  1. Mecanum Drivetrain V2

Final Assembly

PreviousDrive Rail AssemblyNextMecanum Wheel Setup and Behavior

Last updated 2 years ago

Was this helpful?

Final Assembly

Final Assembly Parts Required

Part Number
Description
QTY.

45mm x 15mm C Channel - 248mm

2

Final Assembly Steps

Description

Slide the Left and Right Drive Rail on each side of 2 pieces of 248mm C Channel

Tighten the Nyloc Nuts on each bracket to secure your drivetrain

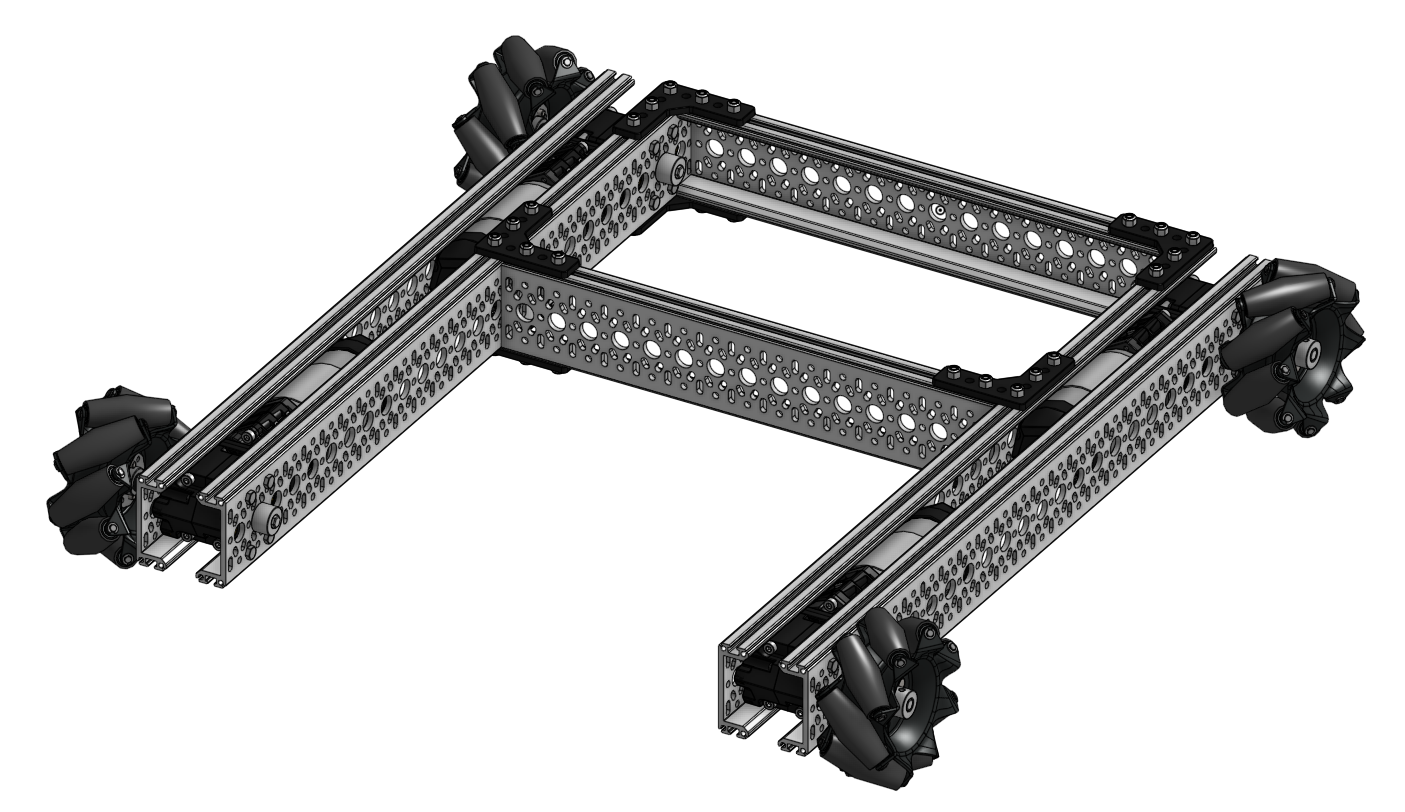

Drivetrain Complete

REV-41-1767
