# Cut List

## Cut List

| Type of Extrusion Stock                                                                       | Length & QTY                                                                                                                       |
| --------------------------------------------------------------------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------- |
| 1/2in Rounded Hex Shaft ([REV-21-1135](https://www.revrobotics.com/.5in-Rounded-Hex-Shafts/)) | <ul><li>1.75in (x2) </li><li>12.5in</li><li>16.75in</li><li>18in</li></ul>                                                         |
| MAXTube - 2x1 - Light ([REV-21-2161](https://www.revrobotics.com/MAXTube-2x1/))               | <ul><li>12.5in</li><li>35.5in (x2)</li></ul>                                                                                       |
| MAXSpline Shaft ([REV-21-2520](https://www.revrobotics.com/rev-21-2520/))                     | <ul><li>1.125in</li><li>12.25in</li><li>14.4375in</li><li>17.75in</li></ul>                                                        |
| MAXTube - 2x1 with Grid Pattern ([REV-21-2590](https://www.revrobotics.com/MAXTube-2x1/))     | <ul><li>2in</li><li>5.5in (x2)</li><li>12.5in</li><li>17in</li><li>35.5in (x2)</li><li>and cuts for MAXSwerve Drivetrain</li></ul> |
| MAXTube - 1/2x1/2 ([REV-21-3289](https://www.revrobotics.com/MAXTube-0.5x0.5/))               | <ul><li>4in</li><li>9.5in</li><li>26.5in (x2)</li><li> 32.5in (x2)</li></ul>                                                       |

## Staying on Pitch

{% hint style="info" %}

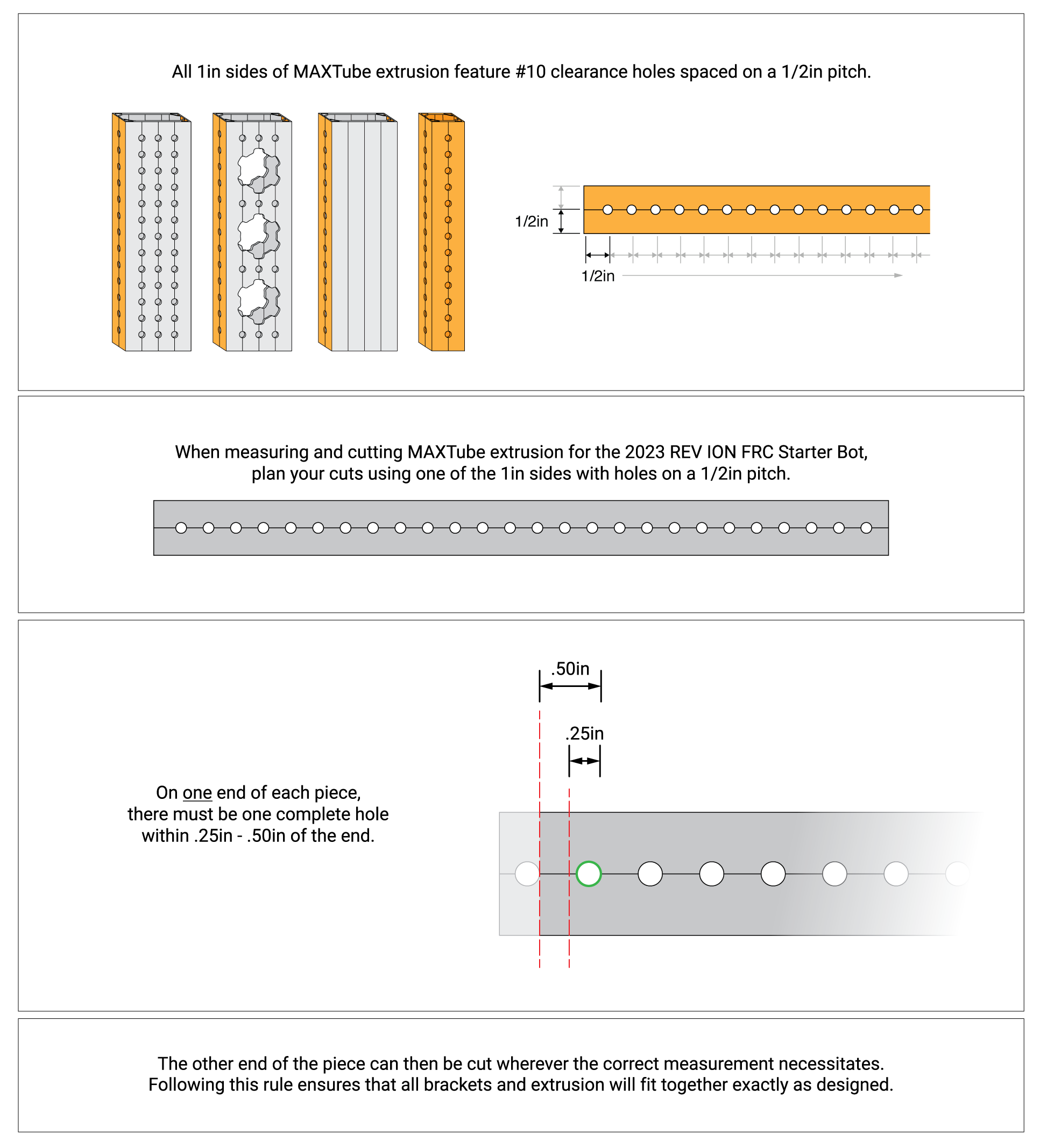

Every piece of structural tubing needs to start with a hole 1/2in (or slightly less) from the end where the length measurement is started.
{% endhint %}

<figure><img src="/files/4MfDAqbf8GG2Bja2KvDH" alt="All 1 inch sides of MAXTube extrusion feature #10 clearance holes spaced on a 1/2 inch pitch. Plan all cuts using a side with a 1/2 in pitch. On ONE end of each piece of structural tubing, there must be one complete hole within .25-.50 inches of the end. "><figcaption><p>Example Cut Images</p></figcaption></figure>
