# MAX 180 Degree Gearbox Assembly

The 180 Degree Output can be assembled with two different Ratios, a 1:1 ratio for balance output and a  2:1 Ratio when more torque is needed. The two Ratios require separate assemblies, both are detailed below.&#x20;

## 1:1 Ratio Assembly&#x20;

| 1) Add two 8mm Shaft Spacers to the NEO Brushless Motor output shaft.                                                                                                                 | <p><img src="/files/VA5xvvyQLJowqSpdfcff" alt="" data-size="original"><br><img src="/files/lK9vPBJoG7d3ckskecm9" alt=""></p> |
| ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ---------------------------------------------------------------------------------------------------------------------------- |
| 2) Insert the NEO Shaft Key.                                                                                                                                                          | <img src="/files/yrayrzmIUJsHpBiR8pd7" alt="" data-size="original">                                                          |
| 3) Slide the 1/2 Hex Shaft Adapter to the NEO output shaft.                                                                                                                           | <img src="/files/AWagDDL0ppKonjPwCDKg" alt="" data-size="original">                                                          |
| 4) Fasten the base plate to the NEO using the left holes in the base plate and two #10-32 x 1/2in screws with a 1/8in Allen Key.                                                      | <p><img src="/files/azeRu1aXdCNnkkPuHKnc" alt=""><br><img src="/files/l24c87eveoWBDGi9sLvp" alt=""></p>                      |
| 5)Press a Flanged Bearing into the base with the flanged side opposite of the NEO.                                                                                                    | <img src="/files/yBQlI7uDgAyGkIbJ0eQA" alt="" data-size="original">                                                          |
| 6) Press a 1/2in Hex Through Bore Shaft into the Flanged Bearing.                                                                                                                     | <img src="/files/3zVSdNFuTIBmsUhzoCVG" alt="" data-size="original">                                                          |
| 7) Slide a 1/8 MAXSpline Spacer onto the  1/2in Hex Through Bore Shaft.                                                                                                               | <img src="/files/CQywLvKepCjW9RUrIsoZ" alt="" data-size="original">                                                          |

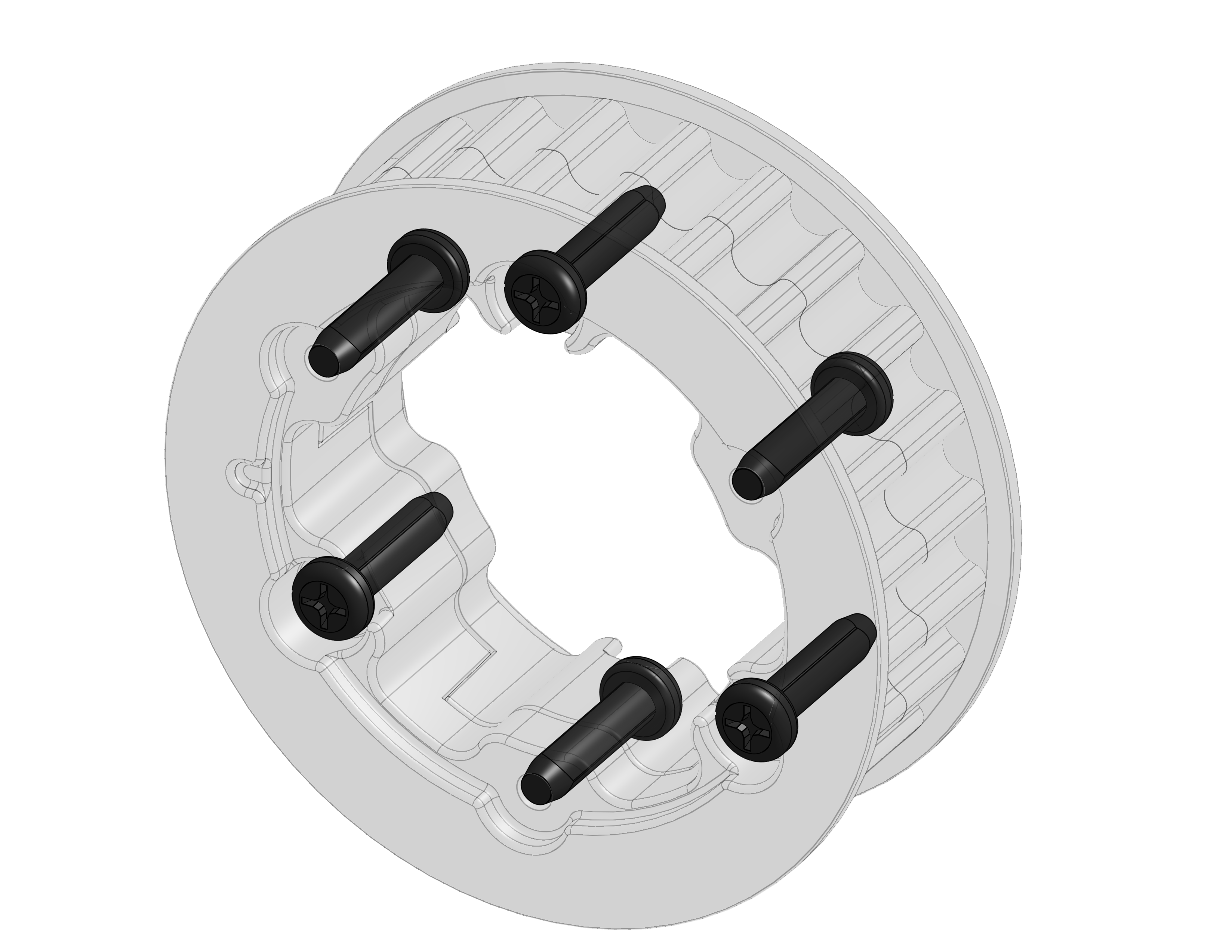

| 8) Screw together two MAXSpline Pulley halves with six M3x12mm screws.                                                                                                                | <p><img src="/files/vIZkEUhdp6VztLV4r1WH" alt="" data-size="original"><br><img src="/files/oTc7CB4Gj1GqwNSABOsK" alt=""></p> |
| 9) Screw together two MAXSpline to 1/2 Hex Adapter halves with two #12-32x1/2in Socket Head screws with a 5/32in Allen Key.                                                           | <p><img src="/files/gZelaHFiGuItS4xc7PtT" alt="" data-size="original"><br><img src="/files/BnX31gLaLNvRFRNCRHK6" alt=""></p> |
| 10) Screw together two MAXSpline Pulley halves with six M3x12mm screws.                                                                                                               | <p><img src="/files/vIZkEUhdp6VztLV4r1WH" alt="" data-size="original"><br><img src="/files/oTc7CB4Gj1GqwNSABOsK" alt=""></p> |
| 11) Place the 48-tooth RT25 Belt around both the NEO Pulley and MAXSpline Pulley, then slide them onto the Output Shaft of the NEO and 1/2in Hex Through Bore Shaft at the same time. | <img src="/files/gCYh4l6hF4xTQpDOKX6C" alt="" data-size="original">                                                          |
| 12) Secure the NEO Pulley with a Retaining Ring.                                                                                                                                      | <img src="/files/XeWmjOIaIvI1ruy5jaa4" alt="" data-size="original">                                                          |
| 13) Slide a 1/8 and a 1/16 MAXSpline Spacer onto the 1/2in Hex Through Bore Shaft.                                                                                                    | <img src="/files/H7kJ2rvksD0V46vXSx3i" alt="" data-size="original">                                                          |
| 14) Press a Bearing onto the 1/2in Hex Through Bore Shaft.                                                                                                                            | <img src="/files/0mPUPt6szs02WDhfkawj" alt="" data-size="original">                                                          |
| 15) Press the Pulley Cover Plate onto the 1/2in Hex Through Bore Shaft Bearing.                                                                                                       | <img src="/files/uOtAn15dlDxakovpvmte" alt="" data-size="original">                                                          |
| 16) Secure the Pulley Cover Plate with three #10-32 x1-1/2in screws and #10 Spacers using a 1/8in Allen Key.                                                                          | <img src="/files/m0Hc17v8PWVaA5WhYcE7" alt="" data-size="original">                                                          |

## 2:1 Ratio Assembly&#x20;

| 1) Fasten the base plate to the NEO using the right holes in the base plate and two #10-32 x 1/2in screws with a 1/8in Allen Key.                                                                                                                                                                                                                            | <p><img src="/files/NE3Z1rpKbUjwRgRCfoel" alt="" data-size="original"><br><img src="/files/3uK3akTpFdzLec3bHVsB" alt=""></p> |
| ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | ---------------------------------------------------------------------------------------------------------------------------- |
| 2)Press a Flanged Bearing into the base with the flanged side opposite of the NEO.                                                                                                                                                                                                                                                                           | <img src="/files/UYkjtA152p8HLwVAHb08" alt="" data-size="original">                                                          |
| 3) Press a 1/2in Hex Through Bore Shaft into the Flanged Bearing.                                                                                                                                                                                                                                                                                            | <img src="/files/puz8XC7hiXoycoCX4i2k" alt="" data-size="original">                                                          |
| 4) Slide a 1/8 MAXSpline Spacer onto the  1/2in Hex Through Bore Shaft.                                                                                                                                                                                                                                                                                      | <img src="/files/tvaGV60xVTy4HCi5wqUp" alt="" data-size="original">                                                          |

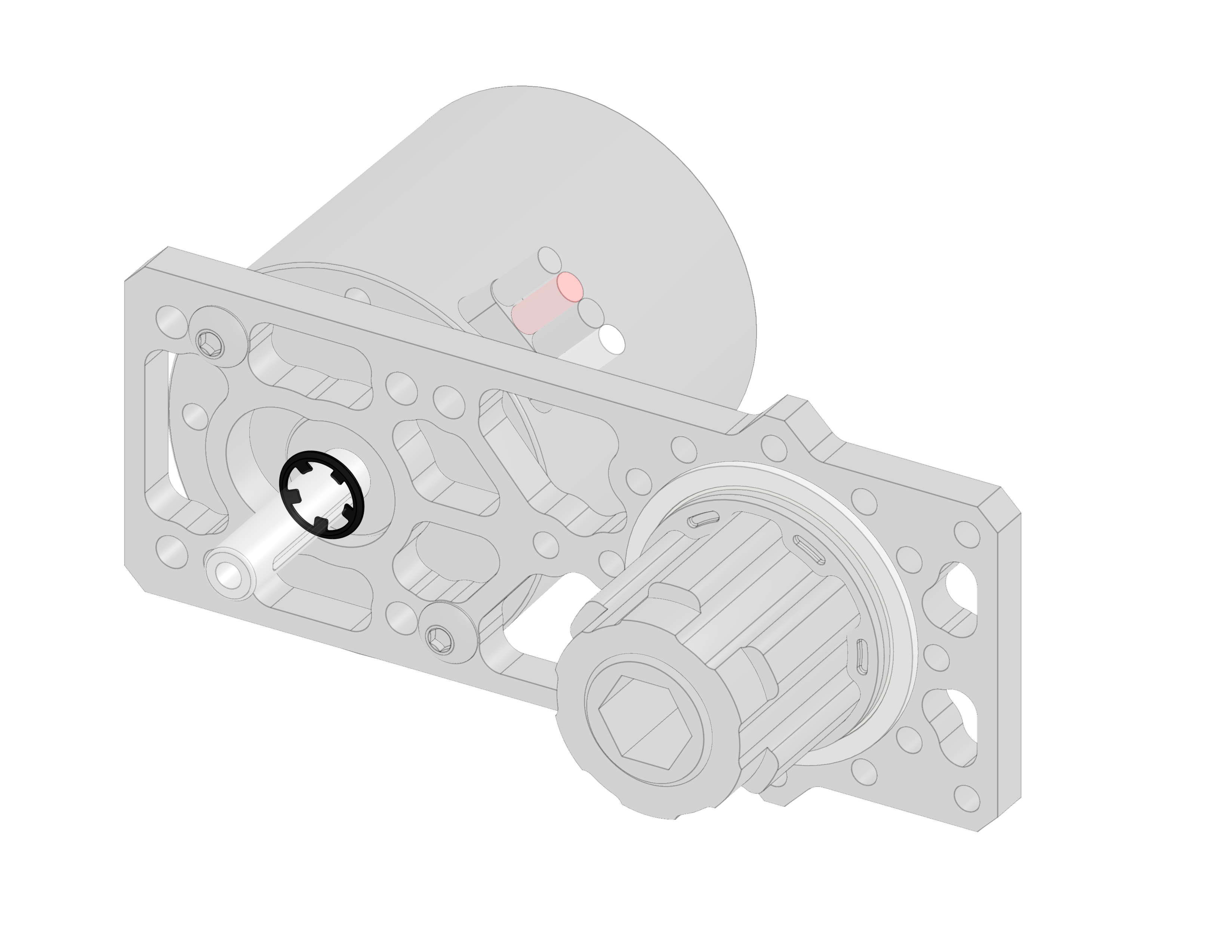

| <p>5) Press a Retaining Ring onto the the Output Shaft of the NEO. <br><br><strong>Please Note: You will adjust this placement later in step 7.</strong> </p>                                                                                                                                                                                                | <img src="/files/v1Rio2p1B5385vWPtuEh" alt="" data-size="original">                                                          |
| 6)  Screw together two MAXSpline Pulley halves with six M3x12mm screws.                                                                                                                                                                                                                                                                                      | <p><img src="/files/vIZkEUhdp6VztLV4r1WH" alt="" data-size="original"><br><img src="/files/oTc7CB4Gj1GqwNSABOsK" alt=""></p> |
| <p>7) Place the 40-tooth RT25 Belt around both a 12tooth-RT25 Pulley and MAXSpline Pulley, then slide them onto the Output Shaft of the NEO and 1/2in Hex Through Bore Shaft at the same time. <br><br><strong>Please Note: Adjust the Retaining Ring on the shaft of the NEO to make the 12tooth-RT25 pulley level with the MAXSpline Pulley.</strong> </p> | <img src="/files/DGPNnURch7TCYElAExWA" alt="" data-size="original">                                                          |
| 8) Secure the 12tooth-RT25 Pulley with a second Retaining Ring.                                                                                                                                                                                                                                                                                              | <img src="/files/xgnV9HbWhp6fOGeldkxm" alt="" data-size="original">                                                          |
| 9) Slide a 1/8 and a 1/16 MAXSpline Spacer onto the 1/2in Hex Through Bore Shaft.                                                                                                                                                                                                                                                                            | <img src="/files/Woat0Em7ucmndYbhc4Qv" alt="" data-size="original">                                                          |
| 10) Press a Bearing onto the 1/2in Hex Through Bore Shaft.                                                                                                                                                                                                                                                                                                   | <img src="/files/em22C38ZPuQf4FHtBSmP" alt="" data-size="original">                                                          |
| 11) Press the Pulley Cover Plate onto the 1/2in Hex Through Bore Shaft Bearing.                                                                                                                                                                                                                                                                              | <img src="/files/1euBIJRBy4pTvBZUnNZ8" alt="" data-size="original">                                                          |
| 12) Secure the Pulley Cover Plate with three #10-32 x1-1/2in screws and #10 Spacers using a 1/8in Allen Key.                                                                                                                                                                                                                                                 | <img src="/files/iPhgSFjYjTVQXzKc3Qjs" alt="" data-size="original">                                                          |


---
