Actuator Brackets

ION UltraPlanetary Bracket

The ION UltraPlanetary Face Mount Bracket (REV-21-2046) allows for easy mounting of our UltraPlanetary Gearbox to any of our MAXTube products. The plate features 2 x #10-32 tapped inserts for easy mounting on any structure.

Specifications:

• Material: Glass-Filled Nylon

• Weight: 6g (0.01lb)

MAXSpline Bracket - Motor Mount - Flat

The MAXSpline Bracket - Motor Mount - Flat (REV-21-2360) facilitates quick mounting of motors or gearboxes with a 2in bolt pattern to MAXTubing or structures. It includes a MAXSpline Bore for accommodating bearings, shaft integration, or other MAXSpline Bore-compatible components.

Specifications:

• Material: 5052 Aluminum

• Thickness: 3mm (0.12in)

• Motor Mounting Holes: #10-32 on 2in bolt circle

• Mounting Holes: 5mm (0.196in) holes on 0.5in grid

• Weight: 33g (0.073lb)

MAXSpline Flat Bracket

MAXSpline Bracket - Motor Mount - Bent

The MAXSpline Bracket - Motor Mount - Bent (REV-21-2361) offers similar functionality to the flat version but features a 90-degree bend on the mounting tabs for versatile positioning. It also includes a MAXSpline Bore for bearing and shaft integration or other compatible components

Specifications:

• Material: 5052 Aluminum

• Thickness: 3mm (0.12in)

• Motor Mounting Holes: #10-32 on 2in bolt circle

• Mounting Holes: 5mm (0.196in) holes on 0.5in grid

• Weight: 27g (0.060lb)

MAXSpline Bent Bracket

Universal Motor Bracket

The Universal Motor Bracket (REV-21-2804) is compatible with most motors or gearboxes, allowing rapid attachment to structures. It features 5mm (0.196in) holes on 0.25in pitch horizontal spacing for precise positioning without the risk of plate slippage. This bracket is ideal for quick problem-solving and efficient prototyping systems.

Specifications:

• Material: 6061 Aluminum

• Thickness: 4.76mm (0.188in)

• Length: 108mm (4.252in)

• Width: 63.5mm (2.5in)

• Mounting Holes: 5mm (0.196in) holes on 0.5in vertical and 0.25in horizontal grid

• Compatible with the following motors and accessories:

  • NEO 1.1, NEO 550, SPARK Flex/ NEO Vortex, MAXPlanetary, UltraPlanetary, Falcon 500, Kraken X60, Kraken X44, Minion, CIM/Mini CIM, 775pro/redline, MAX 90, MAX 180

• Weight: 70g (0.154lb)

Universal Motor Bracket

MAXPlanetary Kraken X44 & Minion Adapter Plate

The MAXPlanetary Kraken X44 & Minion Adapter Plate (REV-21-4444) is designed with counterbored motor mounting holes and #10-32 tapped holes on a 2-inch bolt circle for seamless REV ION compatibility. Its compact footprint ensures a streamlined setup no matter if you are using it as an input for MAXPlanetary or mounting directly to MAX Pattern.

• Material: 6061 Aluminum

• Finish: Black Anodized

• Thickness: 9.5mm (0.374in)

• Motor Mounting Holes: #10 clearance

• Motor Hole Counterbore: 10mm (0.394in) diameter, 5mm (0.196in) depth

• Mounting Holes: #10-32 on 2in bolt circle

• Through Bore Diameter: 19mm (0.752in)

• Mounting Footprint Narrow Side Width: 50.8mm (2in)

• Mounting Footprint Rounded Side Diameter: 60mm (2.362in)

• Weight: 50g (0.11lb)

MAXPlanetary Kraken X44 & Minion Adapter Plate

ION Servo Face Mount Bracket

The ION Servo Face Mount Bracket (REV-21-2896) allows for easy integration of Servo Motors into the ION System. Mount a servo motor, such as our Smart Robot Servo (REV-41-1097), on a 1/2in pitch and line up perfectly with the MAXPattern on MAXTube.

1in Flat Universal Motor Bracket V2 [Discontinued]

The 1in Flat Universal Motor Bracket V2 (REV-21-1841) changes the holes on the 25mm bolt circle from an M4 to an M3 tight fit hole to accommodate 550 style motors, including the NEO 550 Brushless Motor. To use a BAG Motor, the holes on the 25mm bolt circle need to be drilled out to a M4 tight fit.

Specifications:

• Material: 5052 Aluminum

• Thickness: 3mm (0.12in)

• 0.196in holes on 0.5in grid

• Compatible with the following motors:

  • NEO 1.1, NEO 550, Falcon 500, CIM/Mini CIM, 775Pro/Redline, BAG

• Weight: 46g (0.102lb)

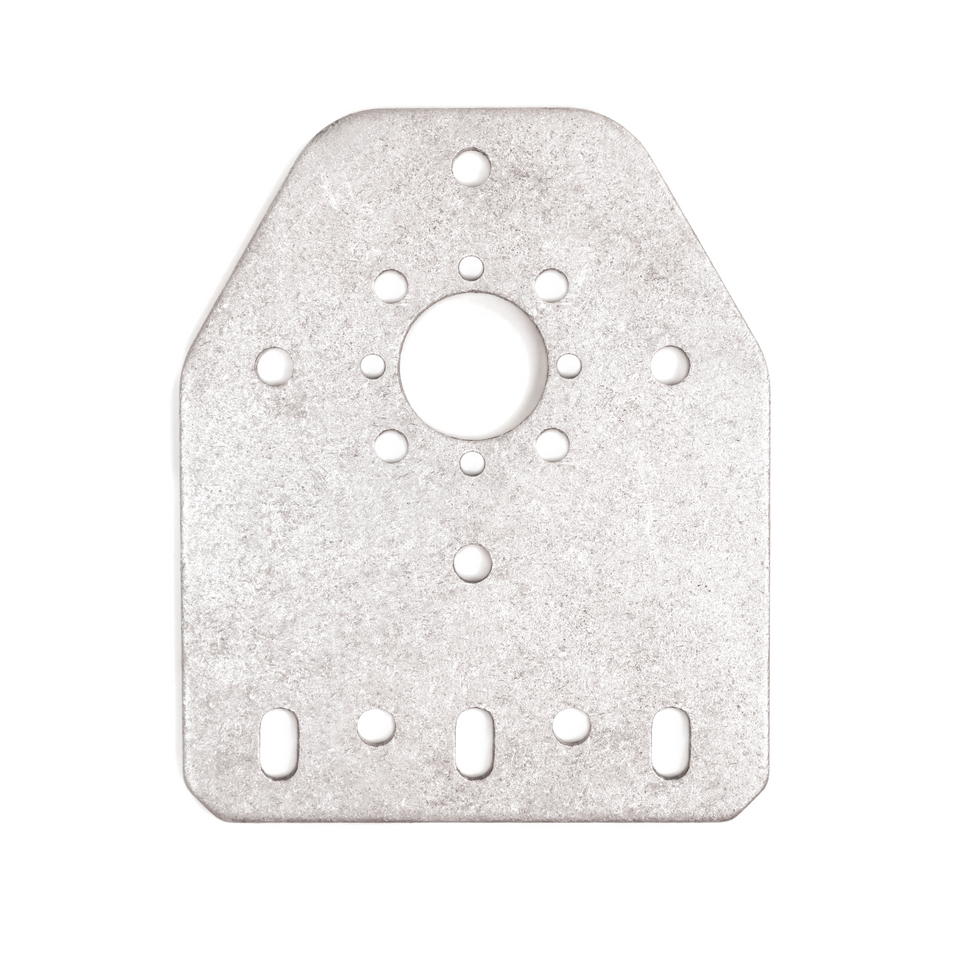

1in Flat Universal Motor Bracket

1in Bent Universal Motor Bracket V2 [Discontinued]

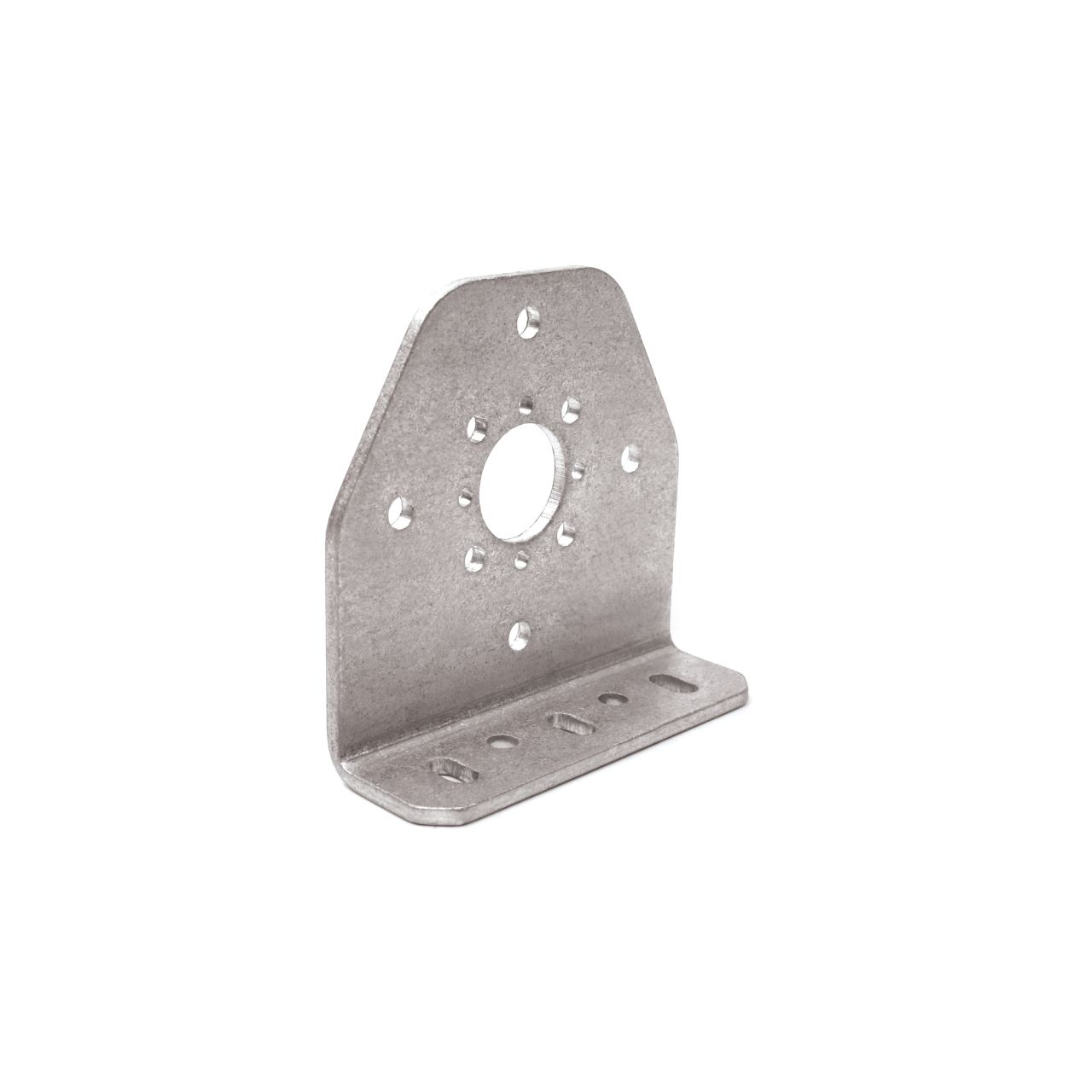

The 1in Bent Universal Motor Bracket V2 (REV-21-1842) This bracket is designed to work seamlessly with the most popular motors in FRC. The Bent Universal Motor Bracket V2 changes the holes on the 25mm bolt circle from an M4 to an M3 tight fit hole to accommodate 550 style motors, including the NEO 550 Brushless Motor. To use a BAG Motor, the holes on the 25mm bolt circle need to be drilled out to a M4 tight fit.

1in Bent Universal Motor Bracket
