  1. REV DUO

Control Hub

PreviousTroubleshootingNextUpdating a Control Hub

Last updated 1 year ago

Was this helpful?

Connecting Via USB

Steps

The Control Hub is ready to connect with a PC when the LED turns green. Note: the light blinks blue every ~5 seconds to indicate that the Control Hub is healthy.

Startup the REV Hardware Client. Once the Hub is fully connected it will show up on the front page of the UI under the Hardware Tab. Select the Control Hub.

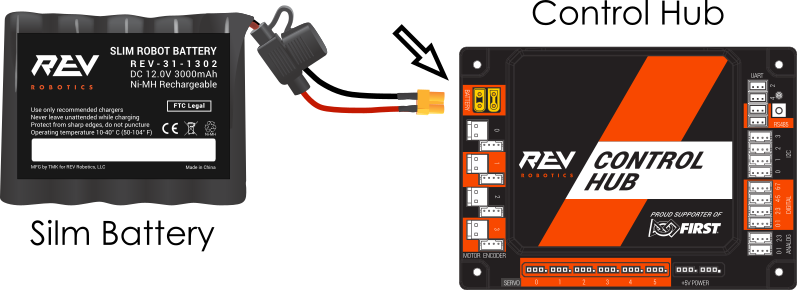

Power on the Control Hub, by plugging the 12V Slim Battery () into the XT30 connector labeled “BATTERY” on the Control Hub.

Plug the Control Hub into the PC using a USB-A to USB-C Cable ()

REV-31-1302
REV-11-1232
