Installation

Below you will find information on how to download and install REVLib for LabVIEW, Java, and C++.

Language	Current REVLib Version	Documentation
LabVIEW	2026.0.1	Embedded (Press Ctrl-H)
Java	2026.0.1	Java Docs
C++	2026.0.1	C++ Docs

Downloads and Installation Instructions

LabVIEW Installation

REVLib LabVIEW Download - Version 2026.0.1

1. Download the latest REVLib LabVIEW package from the download link above.

2. Make sure LabVIEW for FRC 2026 is installed and updated.

3. Open the REVLib LabVIEW Package. The NI Package Manager should automatically open.

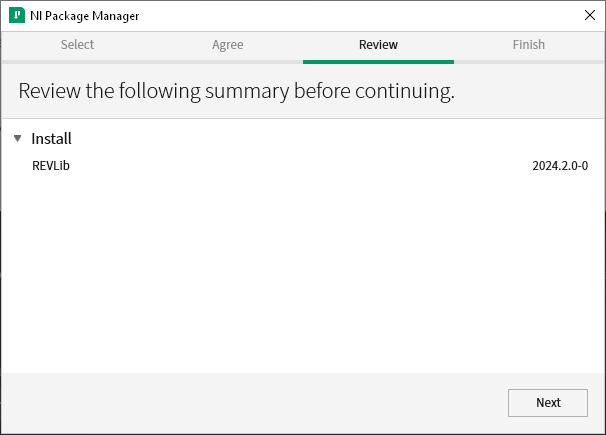

4. Click Next:

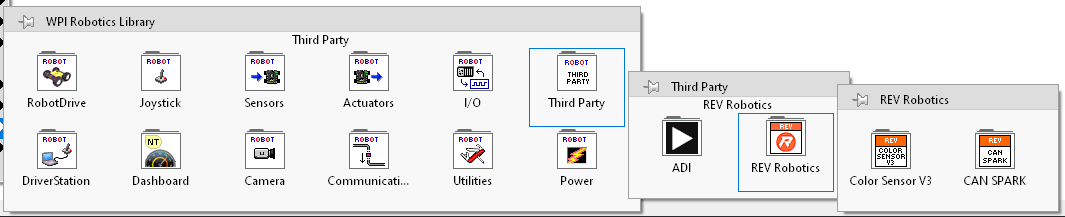

5. Once the installation is complete, you will be able to access the REVLib VIs at LabVIEW Functions Pallet -> WPI Robotics Library -> Third Party -> REV Robotics.



C++ and Java Installation

Online Installation

You can use the online method to install REVLib C++/Java if your development machine is connected to the internet:

1. Open your robot project in VSCode.

2. Click on the WPI icon in the corner to open the WPI Command Pallet.

3. Select Manage Vendor Libraries.

4. Select Install new library (online).

5. Enter the following installation URL and press ENTER:

   https://software-metadata.revrobotics.com/REVLib-2026.json

Offline Installation

REVLib C++/Java Download- Version 2026.0.1

1. Download and unzip the latest REVLib into the C:\Users\Public\wpilib\2026 directory on Windows and ~/wpilib/2026 directory on Unix-like systems.

2. Follow the WPILib instructions for Adding Offline Libraries.
