Position Control Mode

PreviousGetting Started with PID TuningNextVelocity Control Mode

Last updated 4 months ago

Was this helpful?

Position Control is used to point the motor in a specific direction. It takes a setpoint in rotations and uses the PID loop to move to that position. The Position control mode pipes directly into a PID controller with the configured encoder.

For more complex mechanisms or motions where closer control over acceleration and velocity are needed, see MAXMotion Position Control

A properly tuned Position control loop should respond quickly and accurately to a setpoint change and should not oscillate around the target.

To run the motor in Position control mode, set the PID Controller setpoint as shown below.

m_controller.setReference(setPoint, ControlType.kPosition);

API Docs:

using namespace rev::spark;

m_controller.SetReference(setPoint, SparkBase::ControlType::kPosition);

API Reference:

setReference
SetReference

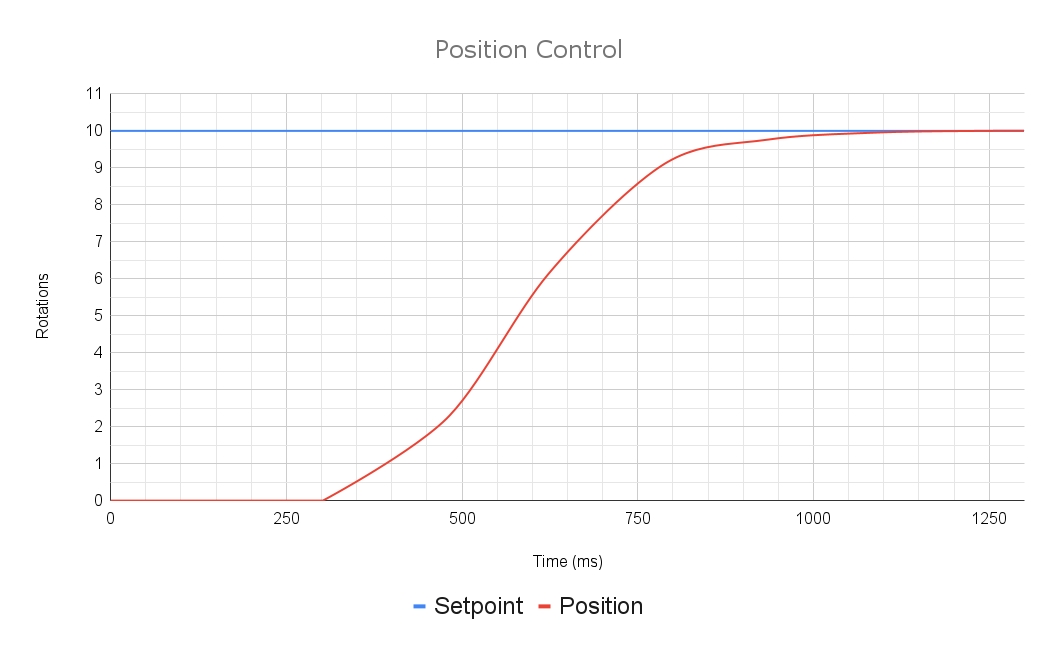

This loop was tuned to show the curve, an ideal controller would move much quicker. In a perfect world, this motion would be nearly instantaneous.
