Smart Velocity Control

PreviousSmart Motion ControlNextSimulation

Last updated 4 months ago

Was this helpful?

Smart Velocity is deprecated as of the 2025 release of REVLib, and teams using it should migrate to MAXMotion Velocity Control Mode

The Smart Velocity control mode utilizes the to improve upon velocity control. Honoring the maximum acceleration, Smart Velocity will speed up and slow down your flywheel or rotary mechanism in a controlled way, reducing power draw and increasing consistency.

It is called as seen below:

m_controller.setReference(setPoint, ControlType.kSmartVelocity);

API Docs:

using namespace rev::spark;

m_controller.SetReference(setPoint, SparkBase::ControlType::kSmartVelocity);

API Reference:

Smart Velocity Control mode will turn your motor continuously. Be sure your mechanism does not have any hard limits for rotation.

setReference
SetReference
Smart Motion parameters

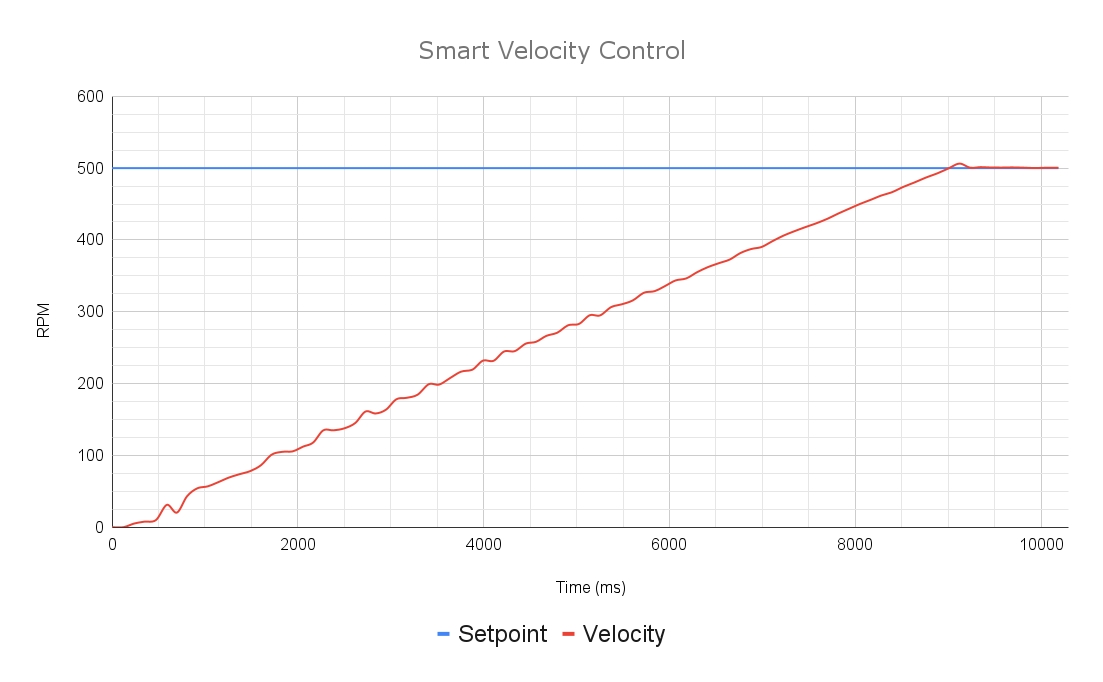

This graph was generated with a very slow acceleration to better show the motion, the wobbles at low speed can be minimized by increasing your acceleration.
