Overview

The 9-Axis IMU, compatible with the REV DUO System, is a high-performance inertial measurement unit (IMU) featuring the Bosch BNO055 smart sensor with an integrated accelerometer, gyroscope, and magnetometer.

The 9-Axis IMU is only available on version 10.0 and newer of the Robot Controller App running on the Control Hub. It will not appear in the configuration menu on older versions.

Features

  • 9-axis IMU

  • Supports Standard (100kHz) or High Speed (400kHz) I2C

  • ESD Protection

Kit Contents

SKU
Product Name
Quantity

REV-31-3332

9-Axis IMU

1

REV-31-1407

JST PH 4-pin Sensor Cable - 30 cm

1

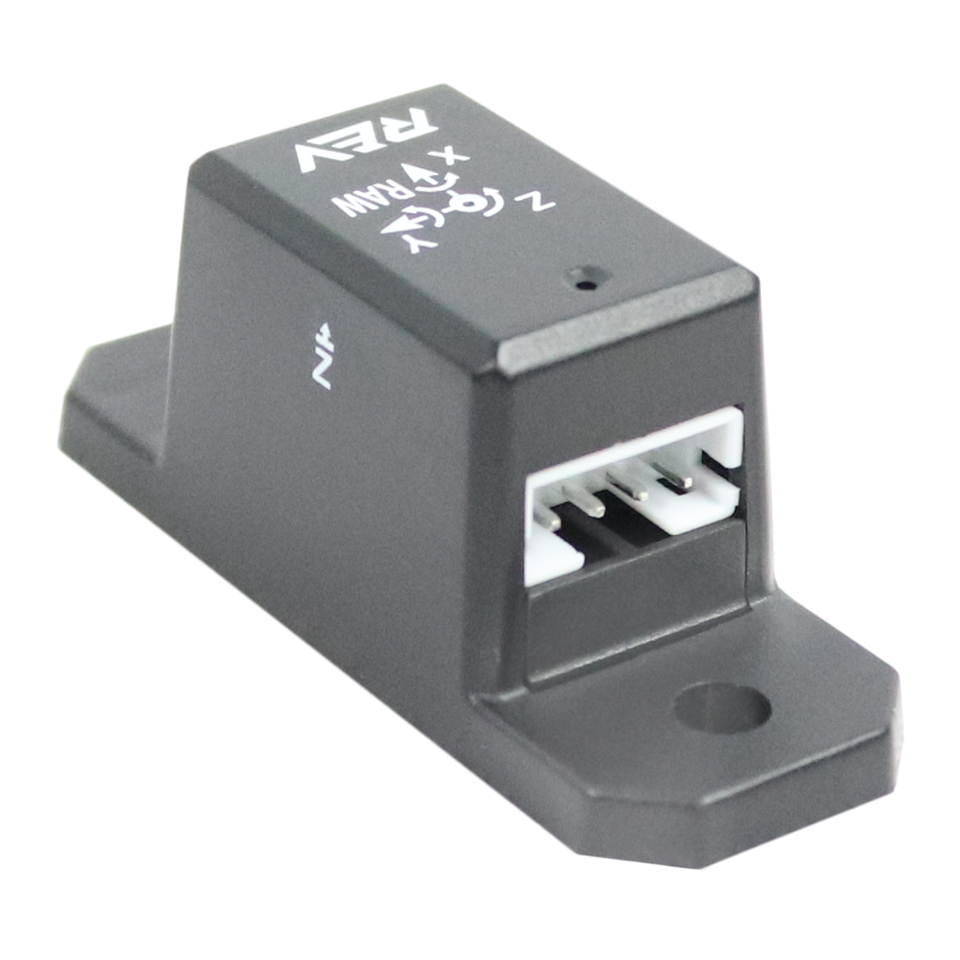

9-Axis IMU
