  1. UltraPlanetary System

Load Ratings

PreviousCartridge DetailsNextAssembly Instructions

Last updated 11 months ago

Was this helpful?

Load Ratings

Ratings are based on testing conducted by REV Robotics on the UltraPlanetary system. All load ratings are based on a safety factor of 1.2 to accommodate manufacturing tolerances. The torques listed are for the output of the stage.

Cartridge
Torque

3:1 Cartridge

Fails at 40 N-m

4:1 Cartridge

Fails at 40 N-m

5:1 Cartridge

Fails at 40 N-m

Shock loads can cause the gearbox to fail in situations where the steady-state torque is still within allowable limits.

Cantilevered load on the output shaft puts additional stress on the gearbox and will reduce the torque the gearbox can withstand.

Cartridge Configuration

Cartridge configuration tables for UltraPlanetary use a red rating system. If the motor and gear ratio combination is highlighted in red, the torque created by the motor can damage the gearbox. Non-highlighted combinations are within acceptable torque ranges.

Nominal gear ratios are used to reference the cartridge for ease of use in the following charts. For actual gear ratios for an individual cartridge, please reference the The final actual gear ratios are indicated in the cells.

When building your gearbox, make sure the highest gear reduction is closest to the motor.

HD Hex Motor Load Ratings

Load Rating for Two-Stage Gearboxes

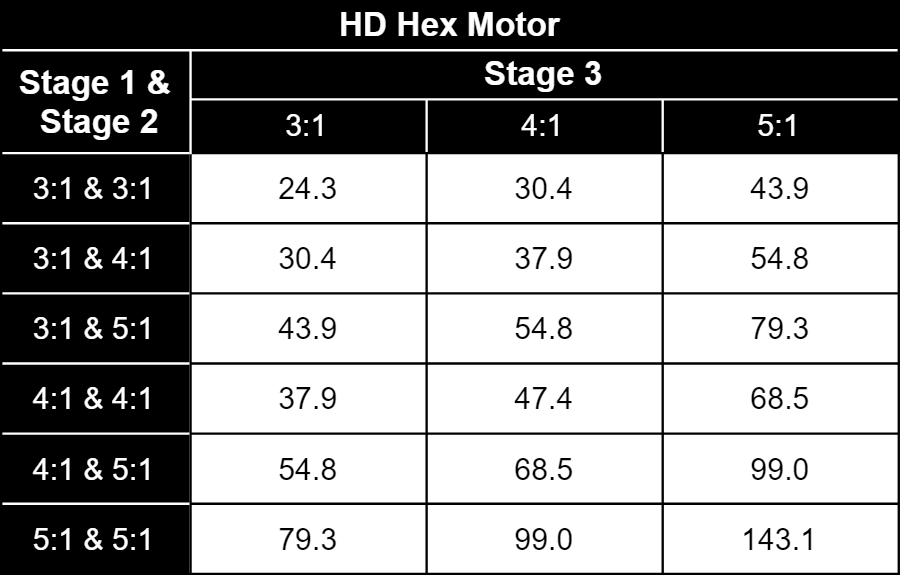

Load Rating for Three-Stage Gearboxes

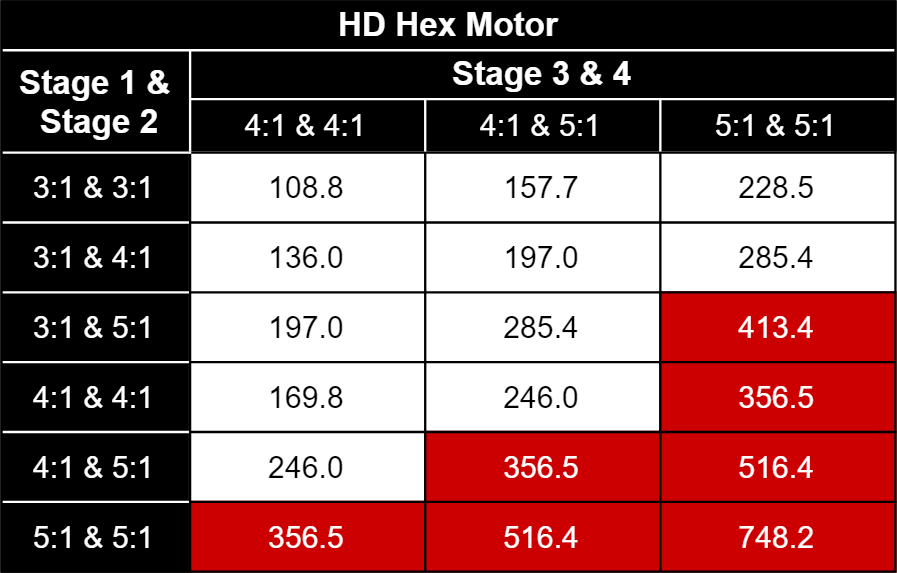

Load Rating for Four-Stage Gearboxes

NEO 550 Load Ratings

Load Rating for Two-Stage Gearboxes

Load Rating for Three-Stage Gearboxes

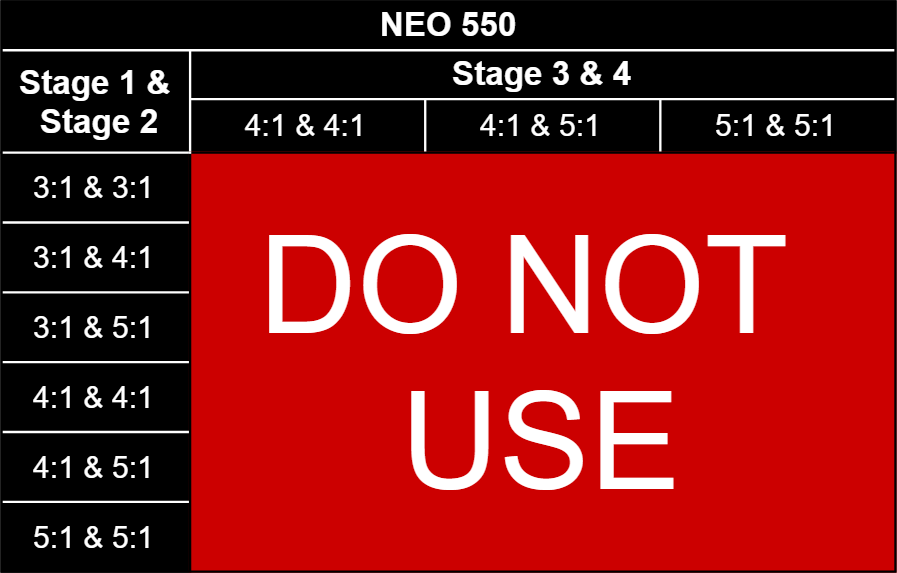

Load Rating for Four-Stage Gearboxes

Actual Cartridge Gear Ratios Table.
