SRS Programmer Overview

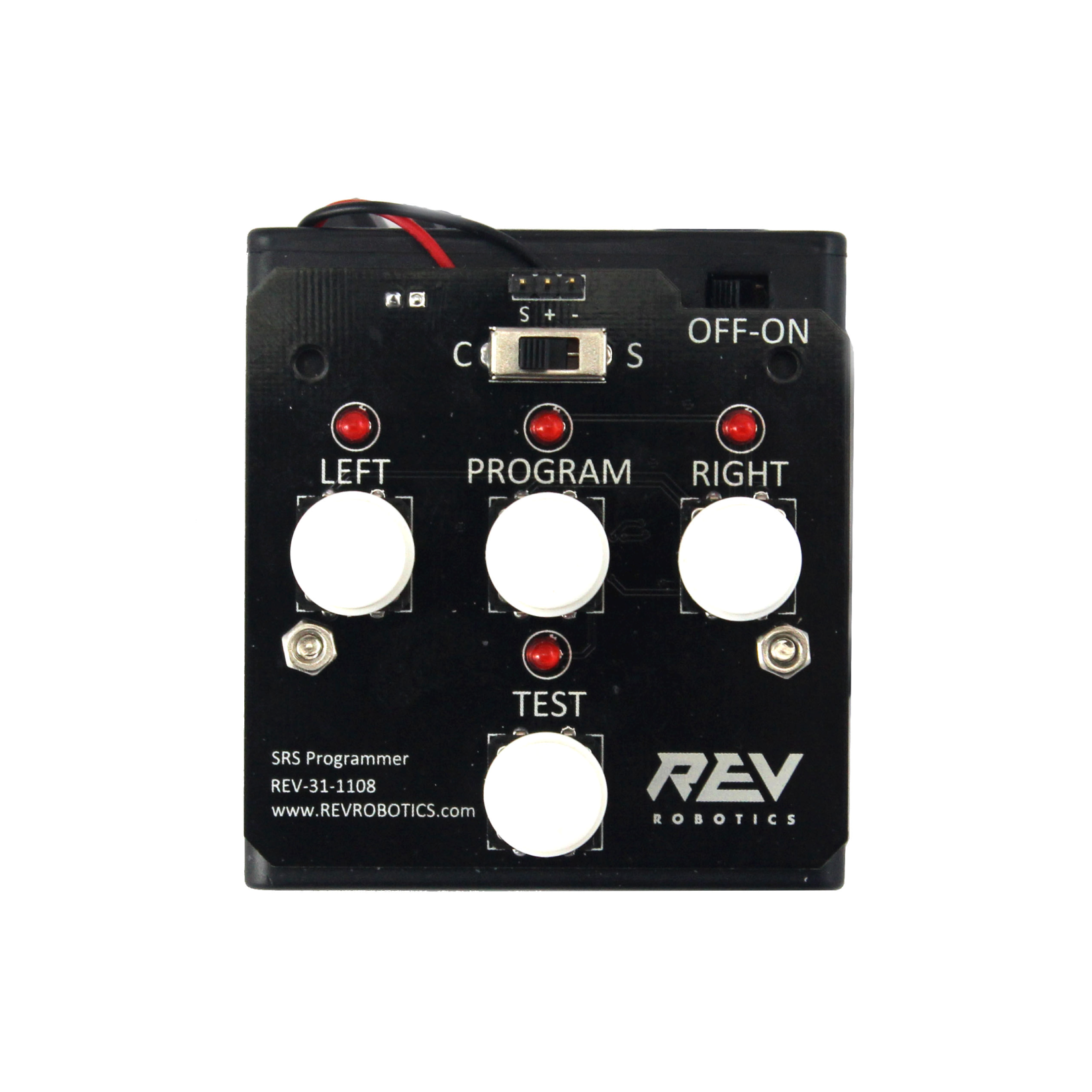

The REV Robotics SRS Programmer is the key to unlocking all the smart features of the Smart Robot Servo (SRS).

Switching between continuous rotation, standard servo, and custom angular modes is easy as pressing a button. The SRS Programmer can not only program the SRS, but it is also acts as a standalone servo tester for any standard RC servo.

Features

The REV Robotics SRS Programmer includes the following features:

  • 3 programming modes

    • Continuous rotation

    • Angular limits

    • Reset to factory defaults

  • Test modes

    • Automatic sweep

    • Manual position/direction

  • Intuitive operation with LED feedback

  • Self-powered

  • Power-off reminder

Specifications

Mechanical Specifications

Parameter

Description

Dimensions

70.5mm x 64.5mm x 35.5mm

Weight

Electrical Specifications

Power Source

4 AA batteries

Power Output

6V nominal

Logic Level (Signal Out)

3.3V

Output Pulse Width Range

550μs – 2450μs

Center Pulse Width

1500μs

Kit Contents

The REV Robotics SRS comes with the following:

  • REV SRS Programmer

Power Off Reminder

If the SRS Programmer is left on for an extended period of inactivity, it will blink every LED as a reminder to shut off power.
