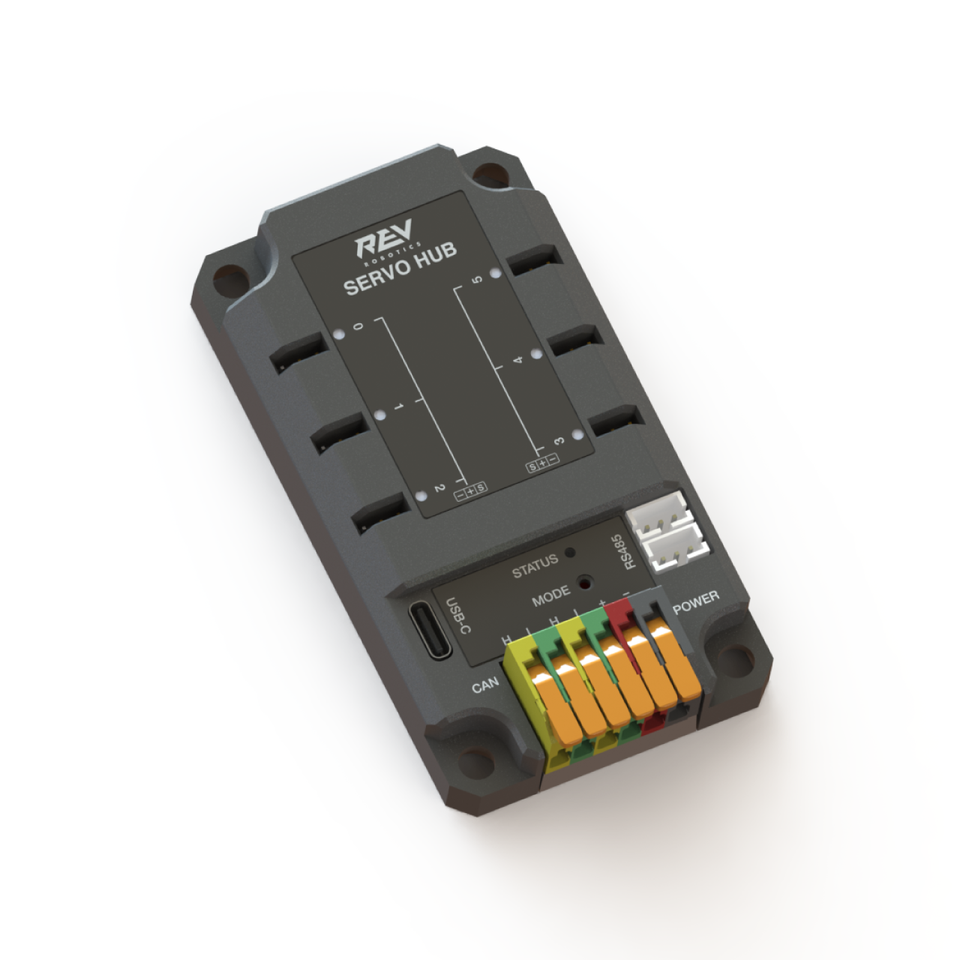

Servo Hub Overview

The REV Servo Hub is compatible with both the REV ION and REV DUO systems. Over a single communication interface it can provide advanced control of up to six (6) servos. This means that the Servo Hub needs no additional PWM cabling between it and your robot controller, greatly simplifying wiring.

Future firmware updates will unlock additional features like current measurements for each output channel, CAN communication, control individual channel power to enable powered-off servo states, and even adjustable output voltage to provide adaptability to a wide range of servo classes.

The Servo Hub is easy to update and configure over the USB-C connection utilizing the REV Hardware Client. With a total current output of 15A shared across all channels, the Servo Hub will give you the power you need to succeed on the field!

Features

  • Connectivity

    • USB

    • RS485

    • CAN

  • Advanced Servo Channels

    • Status LED indicates PWM signal status and faults

    • Individual channel current measurement†

    • Individually switchable channel output power†

  • Configurable output voltage†

  • Over-current protection

  • Reverse polarity protection

  • ESD protection

† - Features available after future software updates.

Main Electrical Specifications

Parameter
Min
Typ
Max
Units

Operating Voltage Range

7

-

15

V

Output Voltage

0.5

-

7.4

V

Max Total Output

-

-

15

A

Channel Max Output Current †

-

-

3

A

Latching WAGO Connectors

Supported Wire Gauge (Bare Solid/Stranded)

26

14

AWG

Bare Wire Strip Length

0.31

0.33

0.355

in

Supported Wire Gauge (Stranded, with ferrule)

24

18

AWG

Servo Connectors

Input

-

PWM cable (standard 3-wire 0.1” pitch)

-

-

Output

-

PWM cable (standard 3-wire 0.1” pitch)

-

-

†

About the Maximum Current Specifications

Each of the Servo Hub's individual port pins are rated for approximately 3 A. This rating, of the port itself, highly depends on the quality of the connection between the Servo Hub and the connector of the servo it is driving.

The Servo Hub has been designed with powerful servos in mind. Many of REV's customers' favorite servos have a stall current of 4 Amps or more. While we don't believe the 4 A stall current will produce enough heat to cause problems with a properly seated and quality connection, a poor connection can cause overheating and thermal runaway that can lead to damage.

The best way to ensure you are making the most of your Servo Power Module's output, is to check that all input and output connections are fully seated with no gaps.

Output Current Calculations

It is important to ensure that you do not exceed the maximum total output current of your Servo Power Module. To do this, add together the stall current of each servo being powered by the Servo Power Module. If the total stall current is higher than 15A, you risk triggering the overcurrent protection. Consider reducing the number of servos connected to prevent triggering the overcurrent protections.

Mechanical Specifications

Parameter
Min
Typ
Max
Unit

Number of Servo Channels

-

6

-

-

Length

-

85.7 (3.374)

-

mm(in)

Width

-

47.6 (1.874)

-

mm(in)

Height

-

18.3 (0.72)

-

mm(in)

Mounting Hole Diameter

-

#10 Clearance

-

-

Mounting Hole Pattern

-

3 by 1.5

-

in

Please see the notes for more information.

About the Max. Current Specifications
