MAXSpline Encoder

Overview

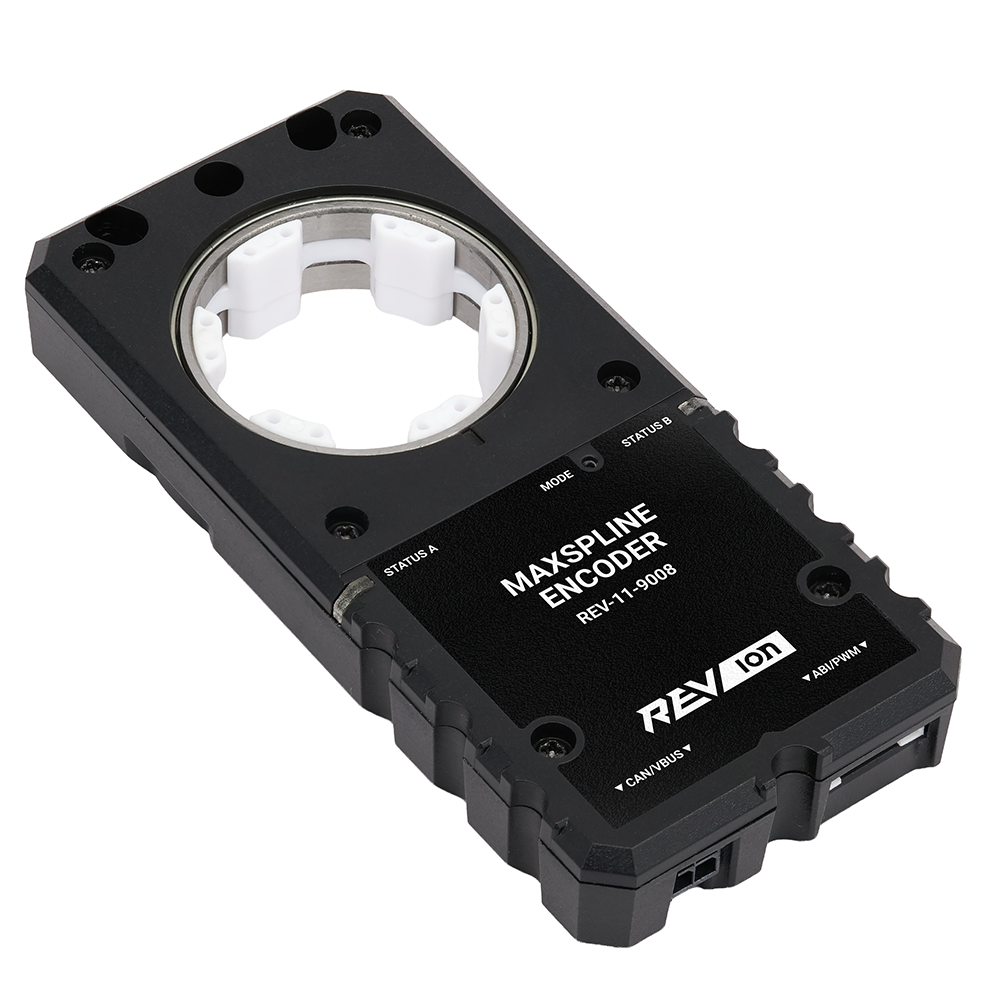

The MAXSpline Encoder delivers high accuracy and robust performance while integrating seamlessly with the MAXSpline ecosystem. Using the same proven magnetic sensing architecture as the Through Bore Encoder V2, this model adds expanded connectivity through both ABI quadrature and CAN communication, giving teams more flexibility in how they collect and route sensor data. Its on-axis MA600 magnetic configuration ensures reliable readings even in environments where optical encoders struggle, and its ±0.5 degree calibrated accuracy supports precise control for a wide range of competitive robotics applications.

MAXSpline Encoder

Designed specifically for MAXSpline shafting, the encoder’s through-bore profile enables clean, compact integration directly over the shaft. The housing incorporates a combination of through holes and castellated #10-32 mounting points, all aligned to the standard 0.5in ION system pitch. This allows teams to mount the encoder in multiple orientations: parallel to nest within the profile of a 2x1 MAXTube, perpendicular for offset encoding, or even attached directly to MAXSpline Shaft Bearing Blocks and pattern plates. The result is a highly adaptable mechanical interface that supports creative layouts without requiring custom spacing or nonstandard hardware.

A dedicated Molex Micro-Fit+ connector provides power and CAN access for teams who want to bypass traditional sensor cabling to motor controllers, while the JST-PH port continues to support incremental and PWM absolute outputs. Two diffused edge-lit status LEDs allow users greater feedback at various viewing angles. With built-in magnet, factory zero calibration, and multiple connection pathways, the MAXSpline Encoder offers a versatile and competition-ready sensing solution.

Features

• Incremental and absolute magnetic encoder

  • Quadrature output: A, B, and Index

  • Absolute pulse-width (duty-cycle) output

  • Uses MPS MA600 sensor in an on-axis magnetic configuration

• Factory calibrated zero-position

  • Zero calibrated to notch in case

• CAN communication support

• Through-bore design

  • Easily mount to a MAXSpline shaft

Do not disassemble the sensor. Disassembling the MAXSpline Encoder will dereference the zero position with the physical case notch. It is not possible to recalibrate the zero position as it is permanently saved inside the sensor at the factory.
