Dual Gamepads

There are many ways to split robot control across two gamepads. We recommend testing different combinations with your team to decide what feels the most comfortable to you!

This version of the program is intended to be just one example for using two gamepads. Arm and wrist control has been moved to a second gamepad while the main gamepad handles driving and the servos on the intake and claw.

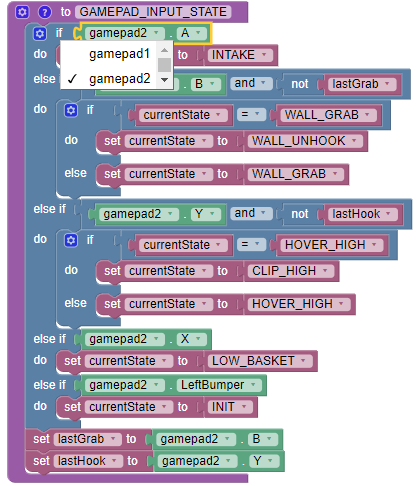

The associated gamepad for a button input can be changed at any time by clicking on the block's dropdown:

Arcade Drive

In this example code, we changed our drive function to only be on the left stick!

When changing a function name this will automatically change throughout the entire code to reflect the new name.

Mecanum Drive

For Mecanum Drive each wheel has an individual motor!

Upgrading from the FTC Starter Kit V3.1 to Mecanum Drivetrain V2:

The following additional parts are needed:

Example Mecanum Drive Program

How a Mecanum Drivetrain is programmed largely depends on the driver's preference for how the controller is configured.

In our provided example, the left joystick controls forward/back and strafe then the right joystick controls turning. This code is based on the sample provided by FIRST in Blocks (BasicOmniOpMode).

Mecanum Demo Blocks Code:

Mecanum Configuration File:

Mecanum Configuration - Control Hub and Expansion Hub

Port Type
Hub
Port Number
Device Type
Name

Motor

Control Hub

0

REV Robotics Ultraplanetary HD Hex Motor

frontLeft

Motor

Control Hub

1

REV Robotics Ultraplanetary HD Hex Motor

backLeft

Motor

Control Hub

2

REV Robotics Ultraplanetary HD Hex Motor

frontRight

Motor

Control Hub

3

REV Robotics Ultraplanetary HD Hex Motor

backRight

Servo

Control Hub

4

Servo

claw

Servo

Control Hub

5

Continuous Servo

intake

Motor

Expansion Hub

0

REV Robotics Core Hex Motor

wrist

Motor

Expansion Hub

1

REV Robotics Ultraplanetary HD Hex Motor

arm

Mecanum Code Breakdown

Before diving into mecanum, double check the direction your motors and wheels are turning. They may need to be reversed if you're experiencing jittering or inverted controls!

At the very beginning of our program the drivetrain motors are set to RUN_WITHOUT_ENCODER.

We need to create some new variables in order to use mecanum. Let's break those down first:

Variable
Purpose

FB

Moving forward and backwards

Strafe

Strafing side to side

Turn

Turning left and right

leftFrontPower

Sets the front left motor power

rightFrontPower

Sets the front right motor power

leftBackPower

Sets the back left motor power

rightBackPower

Sets the back right motor power

max

This is used to check that our values do not exceed the expected range - similar to the "clip" block

At the beginning of the MECANUM_DRIVE function, our variables for each movement direction are being set to the value generated by the movement of the matching joystick axis.

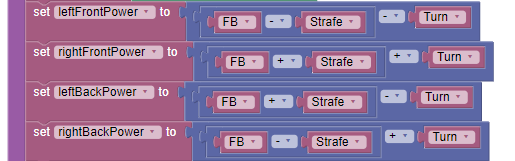

Since we now have four motors in play, our equation for setting the appropriate power to each motor gets a little more complicated.

Our robot first needs to determine the combined movement of the left stick then calculate with the right stick's value. This allows for movement when the left joystick is at an angle, such as strafing along a diagonal!

Next, similar to our original drivetrain code, there's a chance a value may fall outside the range of the motor's power (-1 to 1). Therefore, we want our robot to check and bring those values back into range so we don't miss any inputs.

For our last step, our robot sets the power of each pair of motors based on all our calculations!

Tips, Tricks, & Upgrades Video Walkthrough

Upgrading to a (REV-45-2470) allows for new kinds of movement giving the robot the ability to strafe side-to-side across the field.

REV's Mecanum Drivetrain Kit V2

The FTC Starter Kit V3.1 can be

- QTY 2

- QTY 4

- QTY 1 (set of 4)

- QTY 1

(QTY 1) OR (QTY 2)

Add a block to change the set direction during initialization.

You can learn about arcade style of driving in Hello Robot!
Mecanum Drivetrain
upgraded to the Mecanum Drivetrain V
1 following this guide.
UltraPlanetary Gearbox Kit & HD Hex Motor
Ultra 90 Degree Gearbox
75mm Mecanum Wheel Set
M3 x 6mm HexCap Screws 50 Pack
Expansion Hub
SPARKmini Motor Controller
Full build instructions can be found here!
38KB
Starterbot2025TeleOpBlocksArcade.blk
49KB
Starterbot2025Mecanum.blk
978B
StarterBotMecanum.xml
38KB
Starterbot2025TeleOpBlocksTwoGamepad.blk
Switching arm control to gamepad 2
Arcade Drive Code
Motors are set to RUN_WITHOUT_ENCODER are the beginning of the code
Our mecanum drive function
Forward/back is on left Y, strafe on left X, and turning on right X
Calculating motor power
Making sure our power range is between -1 to 1
Setting motor power
