Programming Teleop

Configuration

Before getting started with programming we needed to create a configuration file. Below is an overview of how the robot is configured for the teleop code to function as expected:

Port Type	Port Number	Device Type	Name
Motor	0	REV Robotics Ultraplanetary HD Hex Motor	rightDrive
Motor	1	REV Robotics Ultraplanetary HD Hex Motor	leftDrive
Motor	2	REV Robotics Core Hex Motor	rightarm
Motor	3	REV Robotics Core Hex Motor	leftarm
Servo	0	Servo	wrist
Servo	1	Servo	gripper

Configuration file download

To put this configuration file on your robot, drag this file into the "FIRST" folder of your Control Hub's file system.

733B

StarterBot2024.xml

Open

For more in-depth information on the configuration process check out Hello Robot - Configuration!

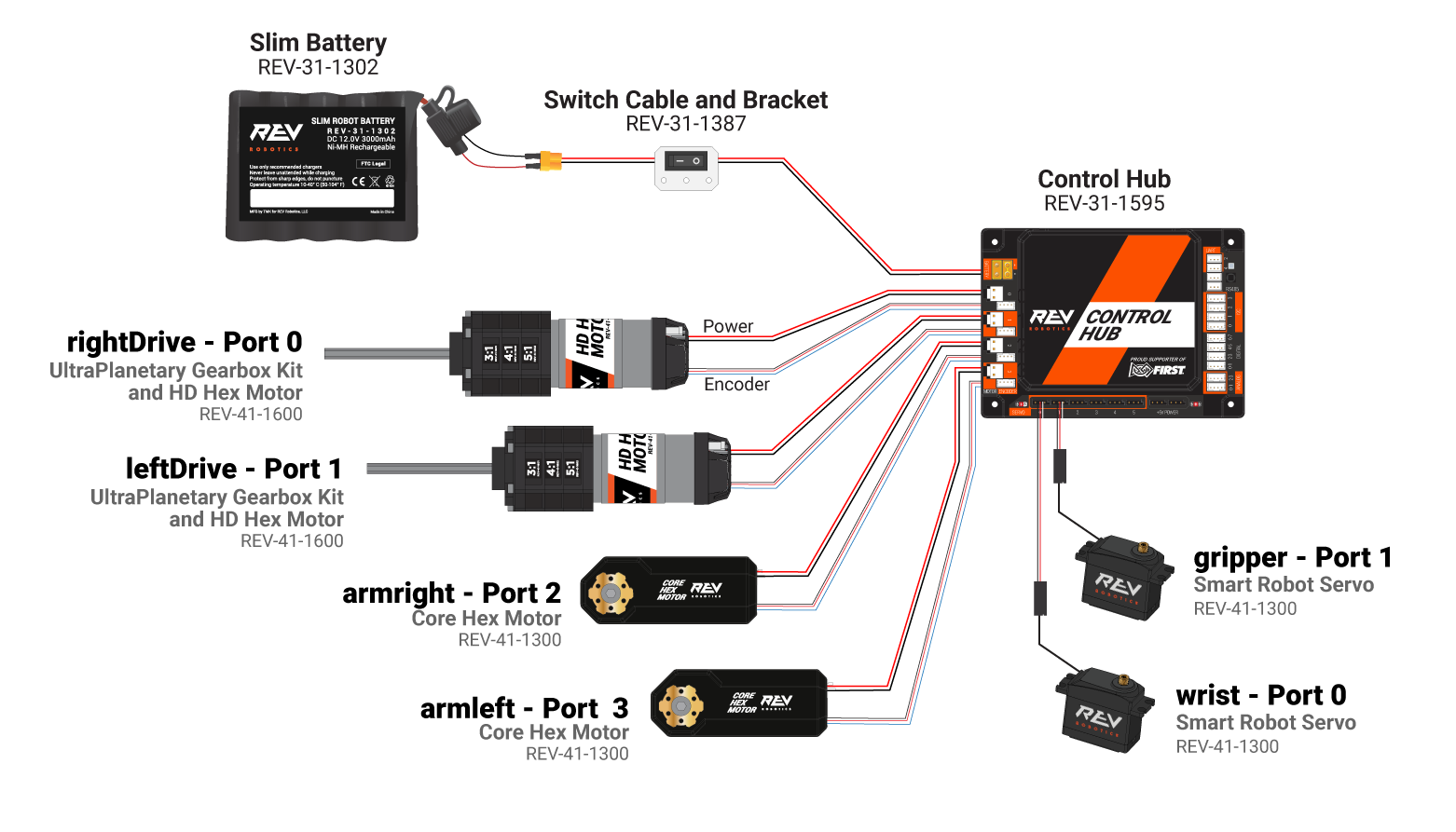

Wiring Diagram

Device Name	Device Type	Port
rightDrive	UltraPlanetary Gearbox Kit and HD Hex Motor	Motor/Encoder Port 0
leftDrive	UltraPlanetary Gearbox Kit and HD Hex Motor	Motor/Encoder Port 1
armright	Core Hex Motor	Motor/Encoder Port 2
armleft	Core Hex Motor	Motor/Encoder Port 3
wrist	Smart Robot Servo	Servo Port 0
gripper	Smart Robot Servo	Servo Port 1

Gamepad Setup

Items to consider when mapping out your gamepad:

• What kind of input does the mechanism need?

  • Joysticks and Triggers input floating point data to your code allowing you to adjust the speed of a motor based on the pressure applied to the trigger or position of the joystick.

  • Buttons, Bumpers, and D-Pad provide boolean data to your code and are ideal for triggering an action such as rotating a motor to a set position.

• What drivetrain are you using and what driving style do you want to use?

  • We decided our robot for CENTERSTAGE would be driven with Split Arcade Drive for advantages in precision while driving.

• Which input makes the most sense?

  • There are multiple buttons in play for this year's Starter Bot. Both bumpers control the gripper's ability to pick up Pixels. The wrist servo is bound to the "A/Cross" and "B/Circle" buttons for rotating between the intake and home position. Lastly, this year's arm is controlled by the triggers.

Not all gamepads have buttons labeled the same way. Check the manufacturer's documentation for accurate button mapping.

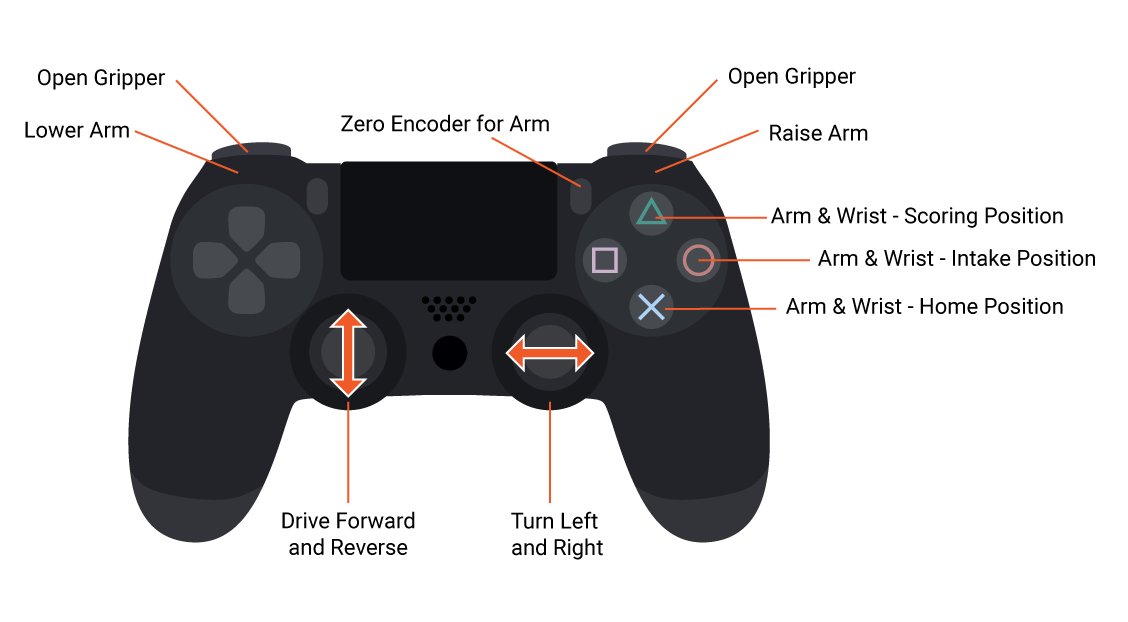

2023-24 REV DUO FTC Starter Bot Gamepad Layout:

2023-24 Starter Bot Gamepad Control Bindings

Gamepad Input	Function
Right Joystick	Turn Left and Right
Left Joystick	Drive Forward and Reverse
Right and/or Left Bumper	Gripper Close
A/Cross	Arm & Wrist Move to Home Position Arm Down, Wrist Up
B/Circle	Arm & Wrist Move to Intake Position Arm Down, Wrist Down
Y/Triangle	Arm & Wrist Move to Scoring Position Arm Back, Wrist Up
Option	Zero Encoder for Arm
Left Trigger	Lower Arm
Right Trigger	Raise Arm

More information on programming gamepads for use with your robot can be found at Hello Robot - Using Gamepads.

Programming Teleop - Blocks

This section makes the assumption that you have learned some of the FTC programming basics by going through the Hello Robot guide. If you have not gone through this guide please walk through it before proceeding.

In Hello Robot- Basics of Programming Drivetrains we covered how to program arcade drive with one joystick. For this example, we will be programming arcade drive using two joysticks. This type of drive is called "split arcade". In split arcade drive, the left joystick will control forward and reverse motion of the robot, and the right joystick will control turning. This is similar to how some RC cars are driven and video games are played.

37KB

Starterbot2024TeleOPBlocks.blk

Open

Copy of the full Blocks code!

Let's break down the Blocks Code for CENTERSTAGE!

Establishing Variables:

This year's Starter Bot makes use of a lot of variables.

Variable	Purpose
homearmposition	Tells the arm where it should sit when set to "home position"
armIntakePosition	Tells the arm where it should sit to intake pixels
armScorePosition	Tells the arm where it should be for scoring
manualMode	Used for checks of if the arm is being manually controlled with the triggers or using the preset positions
armShutdownThreshold	Used in the watchdog check for if the motors are running and when to shutdown
wristUpPosition	Sets the value for when the wrist is in the up position
wristDownPosition	Sets the value for when the wrist is in the down position
gripperClosedPosition	Sets the default gripper position
gripperOpenPosition	Sets the position for where the gripper should move to when the bumpers are pressed
running	Used in the watchdog check for if the motors are in "run_to_position" mode

Variables for the 2023-24 Starter Bot

You will need to program your servos with the SRS Programmer in your kit for accurate gripper and wrist movement!

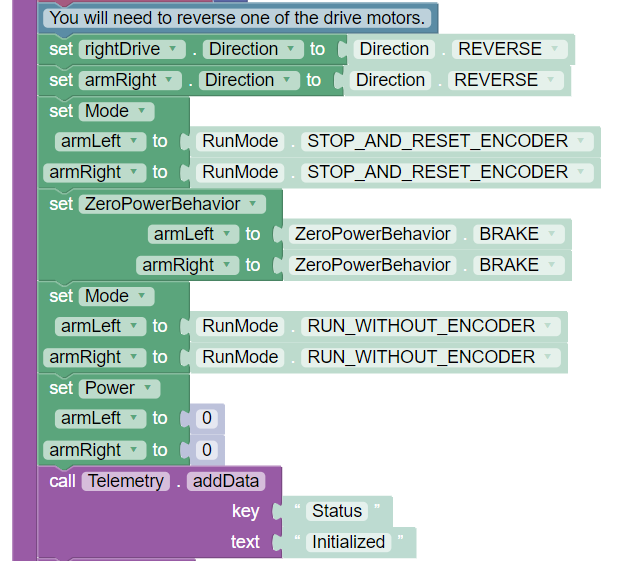

Setting Up Encoders:

This code runs AFTER the initialization is activated, but BEFORE the play button is clicked.

This section allows the encoder on the arm Core Hex Motors to be reset to zero on start up and establishes their default behavior. Additionally, this sets two of the motors to run in reverse, one on the drivetrain and one of the arm motors.

This code will run ONCE after the play button is activated.

This section acts as an additional check for resetting the arm's power and position as well as setting the Core Hex Motors to "RUN_TO_POSITION" mode as default when the play button is clicked.

Split Arcade Drive:

The following sections all run REPEATEDLY in the "while loop" once the play button is activated.

Let's begin with programming our Split Arcade Drive. This code will take input from the right and left joysticks to determine the robot's movement. The left joystick controls forward and back, while the right stick controls left and right turning movement.

Arcade Split Drive Code

Manual Arm Movement:

The triggers on the controller determine the direction of the arm's rotation. The arm's power is determined by how far down both triggers are pressed. Additionally, the if/then statement switches the arm between manual drive and being ready to run the preset positions.

Arm and Wrist Preset Positions:

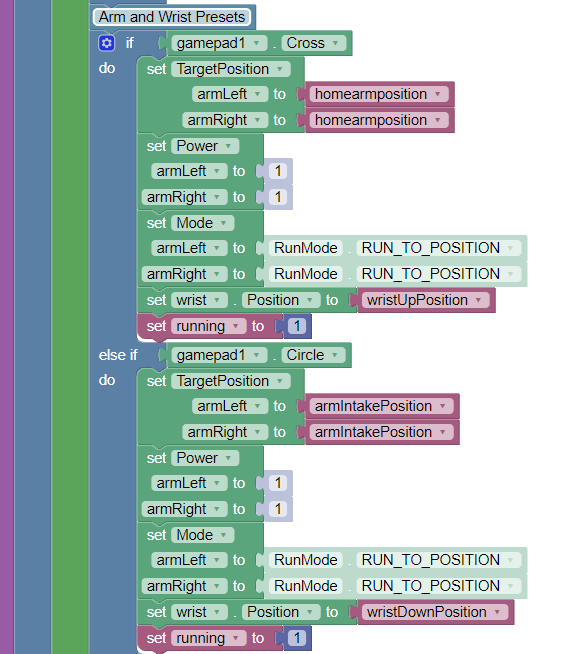

There are three preset positions for the arm and wrist on the Starter Bot- intake, home, and scoring.

Controller Button	Position
A/Cross	Arm moves to the down position, Wrist moves up
B/Circle	Arm moves to the down position, Wrist moves down
Y/Triangle	Arm moves up to behind the robot, Wrist moves to up - the arm should adjust to its final scoring position

Re-zero Encoder:

When you re-zero the encoder the arm and wrist should be in the HOME position.

Watchdog to Shutdown Motor in Home Position:

This check prevents the Core Hex Motors from continuing to run while in home position to prevent potential overheating.

Let's take a closer look at all the parts of this if/then statement:

This if/then statement will only run if all the following are met:

• The arm is not currently moving in manual mode from the triggers being pressed

• The motors are actively on

• The left Core Hex Motor's current and target position are less than or equal to the threshold (currently set to five)

  • Home position's value is set to 0 while Intake is set to 10

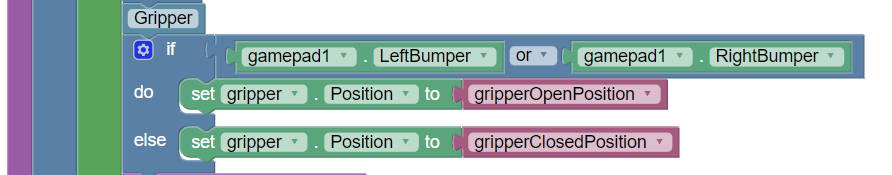

Gripper Controls:

When either or both of the bumpers on the controller are held down the gripper will open fully. When released it will return to the closed position to secure the fingers around the pixel.

Programming Teleop - OnBot Java

This section makes the assumption that you have learned some of the FTC programming basics by going through the Hello Robot guide. If you have not gone through this guide please walk through it before proceeding.

In Hello Robot- Basics of Programming Drivetrains we covered how to program arcade drive with one joystick. For this example, we will be programming arcade drive using two joysticks. This type of drive is called "split arcade". In split arcade drive, the left joystick will control forward and reverse motion of the robot, and the right joystick will control turning. This is similar to how some RC cars are driven and video games are played.

Full Robot Code

To use this code with your Starter Bot, copy and paste it into a new OnBot Java OP Mode!

/* Copyright (c) 2017 FIRST. All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without modification,
 * are permitted (subject to the limitations in the disclaimer below) provided that
 * the following conditions are met:
 *
 * Redistributions of source code must retain the above copyright notice, this list
 * of conditions and the following disclaimer.
 *
 * Redistributions in binary form must reproduce the above copyright notice, this
 * list of conditions and the following disclaimer in the documentation and/or
 * other materials provided with the distribution.
 *
 * Neither the name of FIRST nor the names of its contributors may be used to endorse or
 * promote products derived from this software without specific prior written permission.
 *
 * NO EXPRESS OR IMPLIED LICENSES TO ANY PARTY'S PATENT RIGHTS ARE GRANTED BY THIS
 * LICENSE. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 * "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
 * THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
 * ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE
 * FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
 * DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
 * SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
 * CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
 * OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
 * OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 */

package org.firstinspires.ftc.teamcode;

import com.qualcomm.robotcore.eventloop.opmode.Disabled;
import com.qualcomm.robotcore.hardware.Servo;
import com.qualcomm.robotcore.eventloop.opmode.OpMode;
import com.qualcomm.robotcore.eventloop.opmode.TeleOp;
import com.qualcomm.robotcore.hardware.DcMotor;
import com.qualcomm.robotcore.util.ElapsedTime;
import com.qualcomm.robotcore.util.Range;

@TeleOp(name="Starter Bot 2024", group="Iterative Opmode")

public class StarterBot2024Teleop extends OpMode
{
    // Declare OpMode members.
    private ElapsedTime runtime = new ElapsedTime();
    private DcMotor leftDrive = null;
    private DcMotor rightDrive = null;
    private DcMotor armLeft = null;
    private DcMotor armRight = null;
    private Servo gripper = null;
    private Servo wrist = null;

    private boolean manualMode = false;
    private double armSetpoint = 0.0;

    private final double armManualDeadband = 0.03;

    private final double gripperClosedPosition = 1.0;
    private final double gripperOpenPosition = 0.5;
    private final double wristUpPosition = 1.0;
    private final double wristDownPosition = 0.0;

    private final int armHomePosition = 0;
    private final int armIntakePosition = 10;
    private final int armScorePosition = 600;
    private final int armShutdownThreshold = 5;

    /*
     * Code to run ONCE when the driver hits INIT
     */
    @Override
    public void init() {
        telemetry.addData("Status", "Initialized");

        leftDrive  = hardwareMap.get(DcMotor.class, "leftDrive");
        rightDrive = hardwareMap.get(DcMotor.class, "rightDrive");
        armLeft  = hardwareMap.get(DcMotor.class, "armLeft");
        armRight = hardwareMap.get(DcMotor.class, "armRight");
        gripper = hardwareMap.get(Servo.class, "gripper");
        wrist = hardwareMap.get(Servo.class, "wrist");

        leftDrive.setDirection(DcMotor.Direction.FORWARD);
        rightDrive.setDirection(DcMotor.Direction.REVERSE);
        leftDrive.setZeroPowerBehavior(DcMotor.ZeroPowerBehavior.FLOAT);
        rightDrive.setZeroPowerBehavior(DcMotor.ZeroPowerBehavior.FLOAT);

        armLeft.setDirection(DcMotor.Direction.FORWARD);
        armRight.setDirection(DcMotor.Direction.REVERSE);
        armLeft.setMode(DcMotor.RunMode.STOP_AND_RESET_ENCODER);
        armRight.setMode(DcMotor.RunMode.STOP_AND_RESET_ENCODER);
        armLeft.setZeroPowerBehavior(DcMotor.ZeroPowerBehavior.BRAKE);
        armRight.setZeroPowerBehavior(DcMotor.ZeroPowerBehavior.BRAKE);
        armLeft.setMode(DcMotor.RunMode.RUN_WITHOUT_ENCODER);
        armRight.setMode(DcMotor.RunMode.RUN_WITHOUT_ENCODER);
        armLeft.setPower(0.0);
        armRight.setPower(0.0);

        telemetry.addData("Status", "Initialized");
    }

    /*
     * Code to run REPEATEDLY after the driver hits INIT, but before they hit PLAY
     */
    @Override
    public void init_loop() {
    }

    /*
     * Code to run ONCE when the driver hits PLAY
     */
    @Override
    public void start() {
        runtime.reset();

        armLeft.setMode(DcMotor.RunMode.STOP_AND_RESET_ENCODER);
        armRight.setMode(DcMotor.RunMode.STOP_AND_RESET_ENCODER);
        armLeft.setTargetPosition(armHomePosition);
        armRight.setTargetPosition(armHomePosition);
        armLeft.setPower(1.0);
        armRight.setPower(1.0);
        armLeft.setMode(DcMotor.RunMode.RUN_TO_POSITION);
        armRight.setMode(DcMotor.RunMode.RUN_TO_POSITION);
    }

    /*
     * Code to run REPEATEDLY after the driver hits PLAY but before they hit STOP
     */
    @Override
    public void loop() {
        double leftPower;
        double rightPower;
        double manualArmPower;

        //DRIVE
        double drive = -gamepad1.left_stick_y;
        double turn  =  gamepad1.right_stick_x;
        leftPower    = Range.clip(drive + turn, -1.0, 1.0) ;
        rightPower   = Range.clip(drive - turn, -1.0, 1.0) ;

        leftDrive.setPower(leftPower);
        rightDrive.setPower(rightPower);

        //ARM & WRIST
        manualArmPower = gamepad1.right_trigger - gamepad1.left_trigger;
        if (Math.abs(manualArmPower) > armManualDeadband) {
            if (!manualMode) {
                armLeft.setPower(0.0);
                armRight.setPower(0.0);
                armLeft.setMode(DcMotor.RunMode.RUN_WITHOUT_ENCODER);
                armRight.setMode(DcMotor.RunMode.RUN_WITHOUT_ENCODER);
                manualMode = true;
            }
            armLeft.setPower(manualArmPower);
            armRight.setPower(manualArmPower);
        }
        else {
            if (manualMode) {
                armLeft.setTargetPosition(armLeft.getCurrentPosition());
                armRight.setTargetPosition(armRight.getCurrentPosition());
                armLeft.setPower(1.0);
                armRight.setPower(1.0);
                armLeft.setMode(DcMotor.RunMode.RUN_TO_POSITION);
                armRight.setMode(DcMotor.RunMode.RUN_TO_POSITION);
                manualMode = false;
            }

            //preset buttons
            if (gamepad1.a) {
                armLeft.setTargetPosition(armHomePosition);
                armRight.setTargetPosition(armHomePosition);
                armLeft.setPower(1.0);
                armRight.setPower(1.0);
                armLeft.setMode(DcMotor.RunMode.RUN_TO_POSITION);
                armRight.setMode(DcMotor.RunMode.RUN_TO_POSITION);
                wrist.setPosition(wristUpPosition);
            }
            else if (gamepad1.b) {
                armLeft.setTargetPosition(armIntakePosition);
                armRight.setTargetPosition(armIntakePosition);
                armLeft.setPower(1.0);
                armRight.setPower(1.0);
                armLeft.setMode(DcMotor.RunMode.RUN_TO_POSITION);
                armRight.setMode(DcMotor.RunMode.RUN_TO_POSITION);
                wrist.setPosition(wristDownPosition);
            }
            else if (gamepad1.y) {
                armLeft.setTargetPosition(armScorePosition);
                armRight.setTargetPosition(armScorePosition);
                armLeft.setPower(1.0);
                armRight.setPower(1.0);
                armLeft.setMode(DcMotor.RunMode.RUN_TO_POSITION);
                armRight.setMode(DcMotor.RunMode.RUN_TO_POSITION);
                wrist.setPosition(wristUpPosition);
            }
        }

        //Re-zero encoder button
        if (gamepad1.start) {
            armLeft.setMode(DcMotor.RunMode.STOP_AND_RESET_ENCODER);
            armRight.setMode(DcMotor.RunMode.STOP_AND_RESET_ENCODER);
            armLeft.setPower(0.0);
            armRight.setPower(0.0);
            manualMode = false;
        }

        //Watchdog to shut down motor once the arm reaches the home position
        if (!manualMode &&
        armLeft.getMode() == DcMotor.RunMode.RUN_TO_POSITION &&
        armLeft.getTargetPosition() <= armShutdownThreshold &&
        armLeft.getCurrentPosition() <= armShutdownThreshold
        ) {
            armLeft.setPower(0.0);
            armRight.setPower(0.0);
            armLeft.setMode(DcMotor.RunMode.RUN_WITHOUT_ENCODER);
            armRight.setMode(DcMotor.RunMode.RUN_WITHOUT_ENCODER);
        }

        //GRIPPER
        if (gamepad1.left_bumper || gamepad1.right_bumper) {
            gripper.setPosition(gripperOpenPosition);
        }
        else {
            gripper.setPosition(gripperClosedPosition);
        }

        telemetry.addData("Status", "Run Time: " + runtime.toString());
        telemetry.addData("Gamepad", "drive (%.2f), turn (%.2f)", drive, turn);
        telemetry.addData("Motors", "left (%.2f), right (%.2f)", leftPower, rightPower);
        telemetry.addData("Manual Power", manualArmPower);
        telemetry.addData("Arm Pos:",
            "left = " +
            ((Integer)armLeft.getCurrentPosition()).toString() +
            ", right = " +
            ((Integer)armRight.getCurrentPosition()).toString());
        telemetry.addData("Arm Pos:",
            "left = " +
            ((Integer)armLeft.getTargetPosition()).toString() +
            ", right = " +
            ((Integer)armRight.getTargetPosition()).toString());
    }

    /*
     * Code to run ONCE after the driver hits STOP
     */
    @Override
    public void stop() {
    }

}
