NEO V1 Overview

The REV NEO Brushless Motor (REV-21-1650) is the first brushless motor designed to meet the unique demands of the FRC community. Offering an incredible power to weight ratio along with it's compact size it's designed to be a drop-in replacement for CIM-style motors as well as an easy install with mounting options.

Features

  • Drop-in replacement for CIM-style motors

  • Shielded out-runner construction

  • Front and rear ball bearings

  • High-temperature neodymium magnets

  • High-flex silicone motor wires

  • Integrated motor sensor

    • 3-phase hall sensors

    • Motor temperature sensor

Wiring Connections

CAUTION: Improperly wiring the connectors can cause severe motor damage and is not covered by the warranty. DO NOT connect the motor directly to the battery.

Motor Specifications

Parameter
Value and Units

Nominal Operating Voltage

12 V

Motor Kv

473 Kv

Free Speed`

5676 RPM

Free Running Current

1.8 A

Stall Current

105 A

Stall Torque

2.6 Nm

Peak Output Power

406 W

Typical Output Power at 40 A

380 W

Hall-Sensor Encoder Resolution

42 counts per rev.

Mechanical Specifications

Parameter
Value and Units

Output Shaft Diameter

8mm (keyed)

Output Shaft Length

35mm (1.38in)

Output Pilot

19.05mm (0.75in)

Body Length

58.25mm (2.3in)

Body Diameter

60mm (2.36in)

Weight

0.938 lbs (0.425 kg)

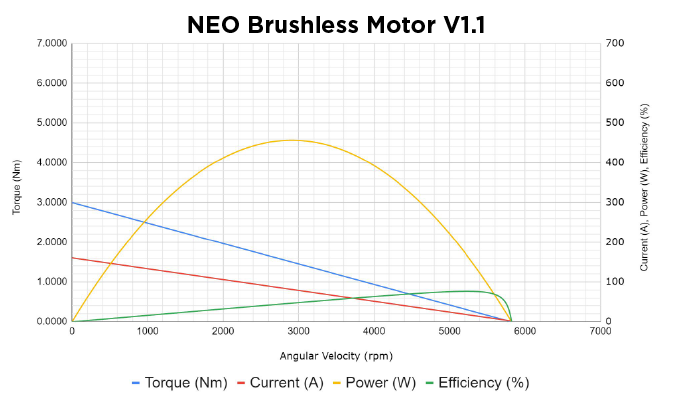

NEO V1 Motor Curve

The only difference between the NEO V1 and NEO V1.1 are external changes to the motor's housing.

All of our motor testing was performed on our in-house dynamometer.

Connecting the NEO V1.1 Brushless motor is fairly straightforward. Follow the guide at, and don't forget to connect your sensor wire; the motor will not spin without it!

Check out the for additional information! Please read the and ensure you understand how to set an appropriate before using your NEO Brushless Motor.

Wiring the Spark Max
NEO Motor Data Sheet
NEO Motor Locked Rotor Testing
Smart Current Limit
