JST VH - Motor Power

Motor Power connections on the Control Hub (REV-31-1595) use the JST VH style connector. This connector is keyed and locking with a small latch, seen below, which must be depressed to release the cable.

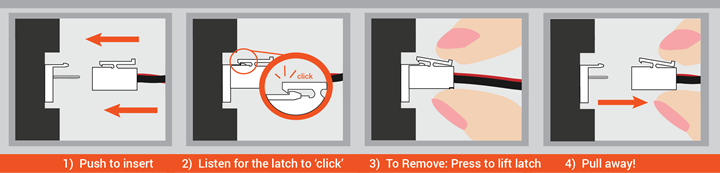

Figure 1: How to Use a JST VH Cable

REV Robotics recommends, in most cases, that teams use pre-made cables because crimp quality is better when made using industrial tooling. These cables can be purchased directly from the REV Robotics website or through other online vendors.

Premade JST VH Cables and Accessories

Cable/Accessory	Pins	Length	REV Robotics Part Number
JST VH 2-Pin Motor Cable	2 pins	30 cm	REV-31-1412
JST VH 2-Pin Motor Cable	2 pins	50 cm	REV-31-1413
JST VH 2-Pin Motor Cable	2 pins	100 cm	REV-31-1526
Anderson to JST VH Cable	2 pins	12 cm	REV-31-1381
JST VH 2-pin Joiner Board	2 pins	-	REV-31-1429

For teams that want to try crimping their own cables, or to find more information about the connectors, Table 3 lists the appropriate part numbers.

Connector Specifications

• 10A Continuous Current (16AWG)

• 3.96mm Pitch

• Accepts 22-16AWG Wire

JST VH Connector Part Number Reference

	Manufacturer Part Number	DigiKey Part Number
Contact, JST VH, 18-22AWG	SVH-21T-P1.1	455-1133-1-ND
Contact, JST VH, 16-20AWG	SVH-41T-P1.1	455-1319-1-ND
Housing, JST VH, 2-pin	VHR-2N	455-1183-ND
Header, JST VH, 2-pin, Top Entry	B2P-VH	455-1639-ND
Header, JST VH, 2-pin, Side Entry	B2PS-VH	455-1648-ND
