  1. Hello Robot - Intro to Blocks Programming
  2. Part 2: Robot Control

Robot Control Full Program

PreviousAdding a Limit SwitchNextPart 3: Autonomous and Encoders

Last updated 6 months ago

Was this helpful?

It's time to bring everything together so to have a fully mobile robot! Returning to our HelloRobot_TeleOp program we can add our arm control to our loop below the drivetrain code.

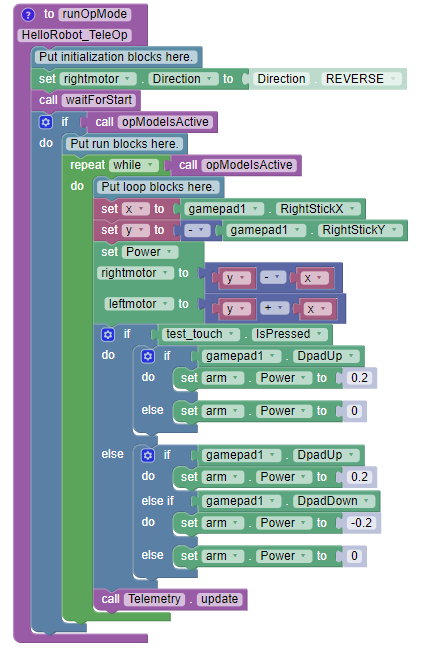

Full Program

Right Stick vs. Left?

Which joystick is used for driving the robot is largely based on driver preference.

Downloads

Class Bot V2 / Hello Robot Configuration File:

Note: This configuration file includes the test_motor from Part 1 and no color sensor.

Class Bot V2 / Hello Robot Full TeleOp:

Class Bot V2 / Hello Robot Arm Control no Limit Switch:

Class Bot V2 / Hello Robot Arm Control with Limit Switch:

For Hello Robot, we will be referencing using the right stick due to the arm control using the Dpad. This can be changed at any time by selecting your preferred option from the dropdown menu on the blocks!

These premade programs do not include control of the Class Bot V2's "claw" servo. To learn about programming a servo visit .

Programming Servos
694B
HelloRobot.xml
8KB
HelloRobot_TeleOp.blk
3KB
HelloRobot_ArmControl.blk
5KB
HelloRobot_LimitSwitch.blk
